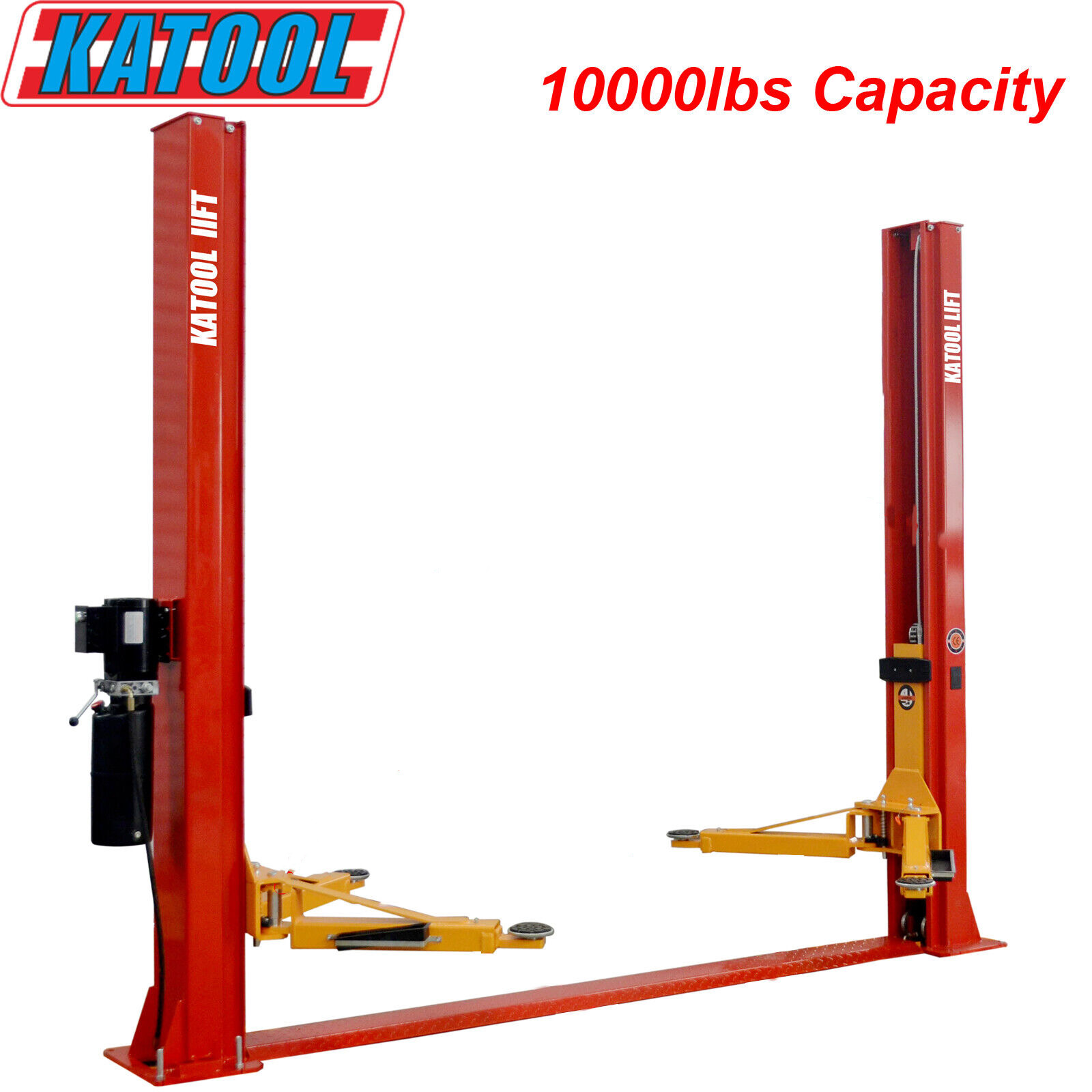

KT-H100 Two Post Vehicle Lift 10,000lbs
$2,699.00 USD
3
People watching this product now!
- 10000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Manual safety release from two sides
- Symmetric arm
- Base plate design
- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection
- Comes with extension support adaptor sets of +30mm and +120mm
- Feet-protection safety guardrails with tools box
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH (Optional)
- There is a $250 Surcharge for the following states: OR, WA, ID, MT, ND, SD, and ME
- Is this being shipped to a residential address? An additional $150 will be charged to residential
Description
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
| Lifting Capacity | 10000lbs/4500KG |
| Max. Lifting Height | 70.75″/1800mm |
| Min. Height | 4.25″/110mm |
| Height Overall | 110.25″/2800mm |
| Width Overall | 142.25″/3614mm |
| Outside Column | 128″/3250mm |
| Inside Column | 110.25″/2800mm |
| Dirve-Thru Clearance | 94.5″/2400mm |
| Front Arm Reach (Min) | 30.75″/780mm (2 stages) |
| Front Arm Reach (Max) | 50.5″/1280mm (2 stages) |
| Rear Arm Reach (Min) | 30.75″/780mm (2 stages) |
| Rear Arm Reach (Max) | 50.5″/1280mm (2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
| Net Weight | 1256lbs/570KG |
