KT-T810 Wheel Clamp Tire Changer Machine
$1,399.00 USD
–Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim.
Description
–The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim.

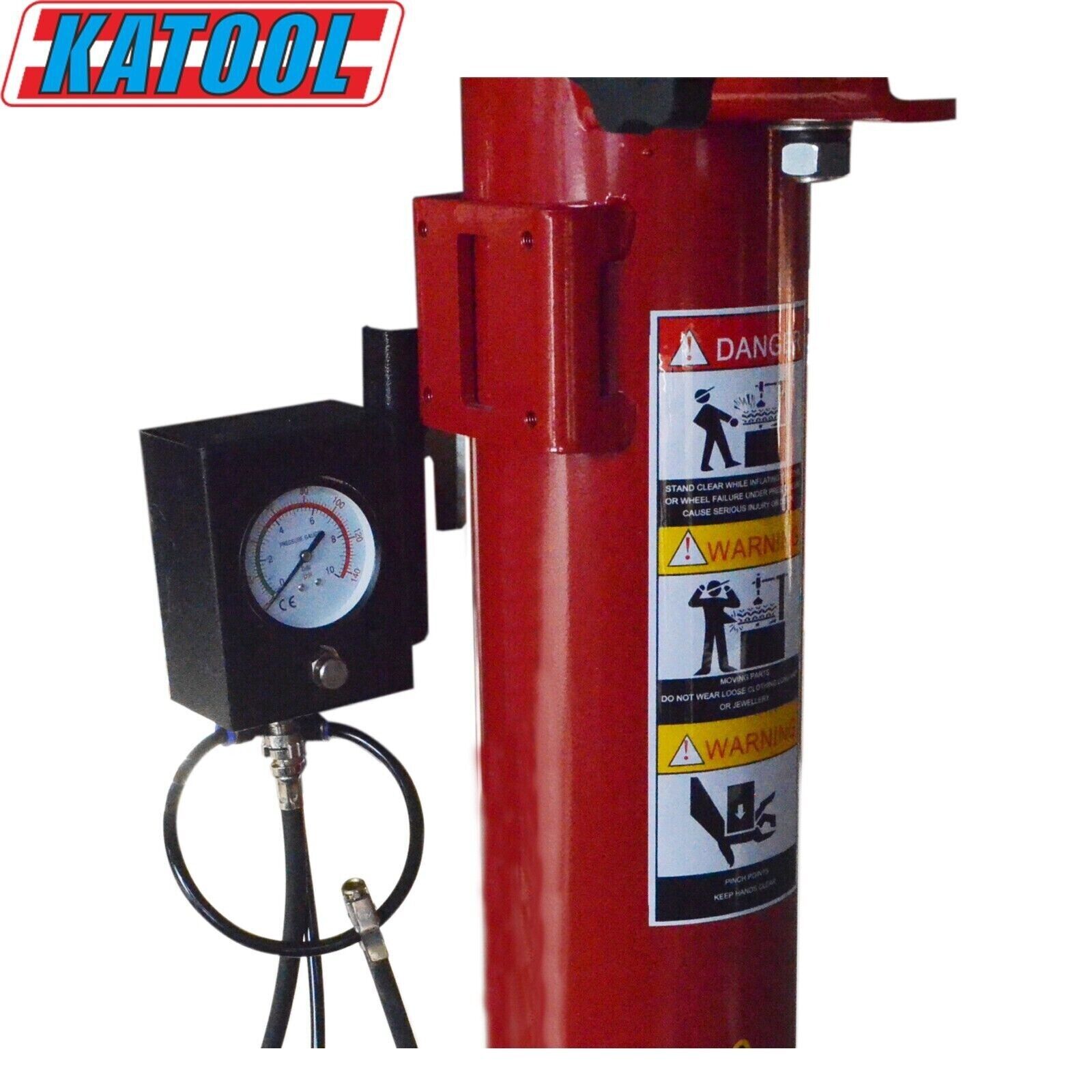

— Inflation gauge with pedal control.
–With high quality spade cover, effective prevent damage rim.
–Pull type pedal control system, convenience for changing and maintenance.
–Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life.

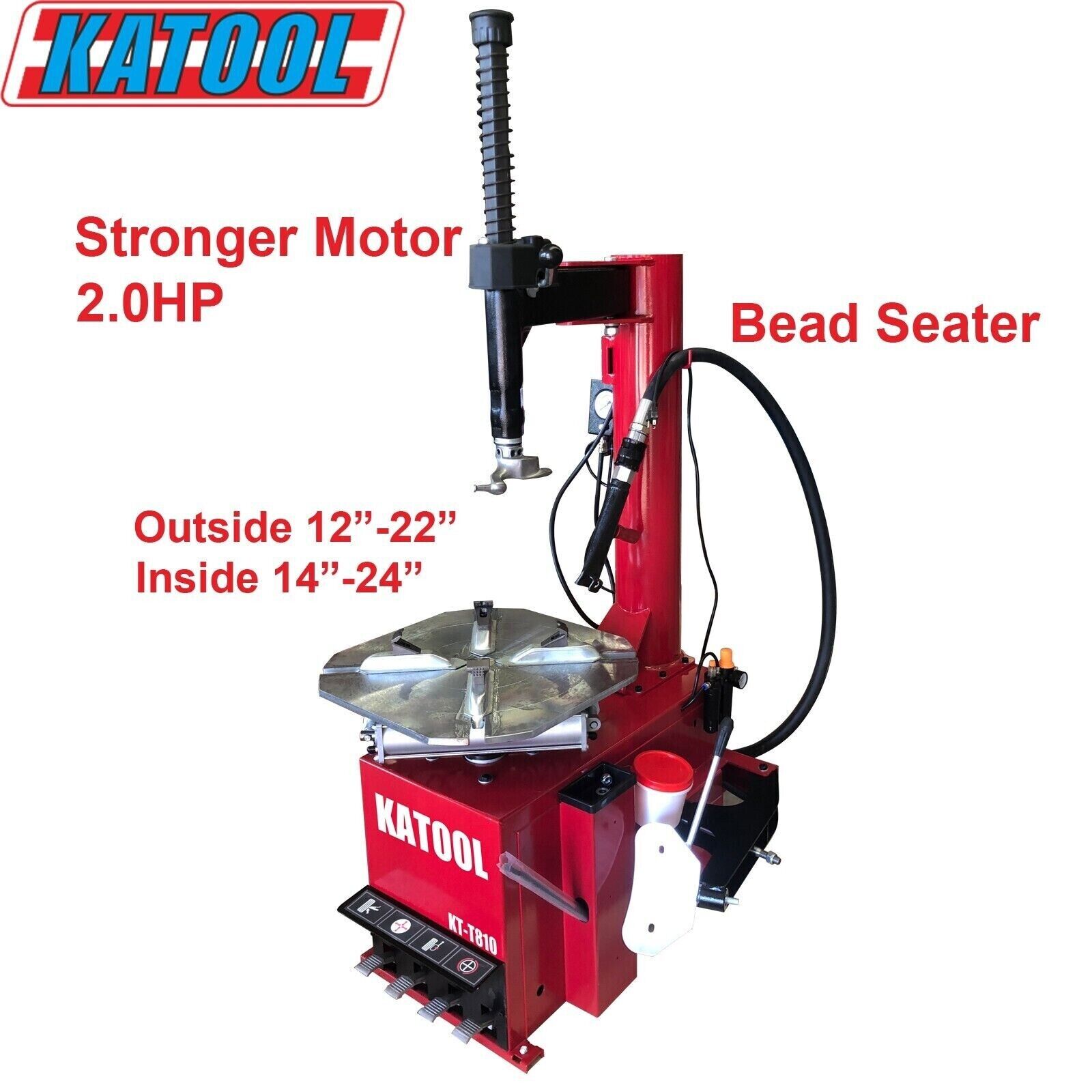

— Bead blast seater head with post tank
–With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system.
–For North America region used 120V/1ph/2.0HP motor, stronger power and high efficiency working.
–Closed body for protect inside parts well.
|
Max Wheel Diameter :
|
41″/1040mm
|
|
Max Wheel Width :
|
15″/380mm
|
|
Outside Clamp:
|
12″-22″
|
|
Inside Clamp :
|
14″-24″
|
|
Power Supply:
|
120V 1PH
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.8r/min
|
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
|
Net weight :
|
186KG
|
