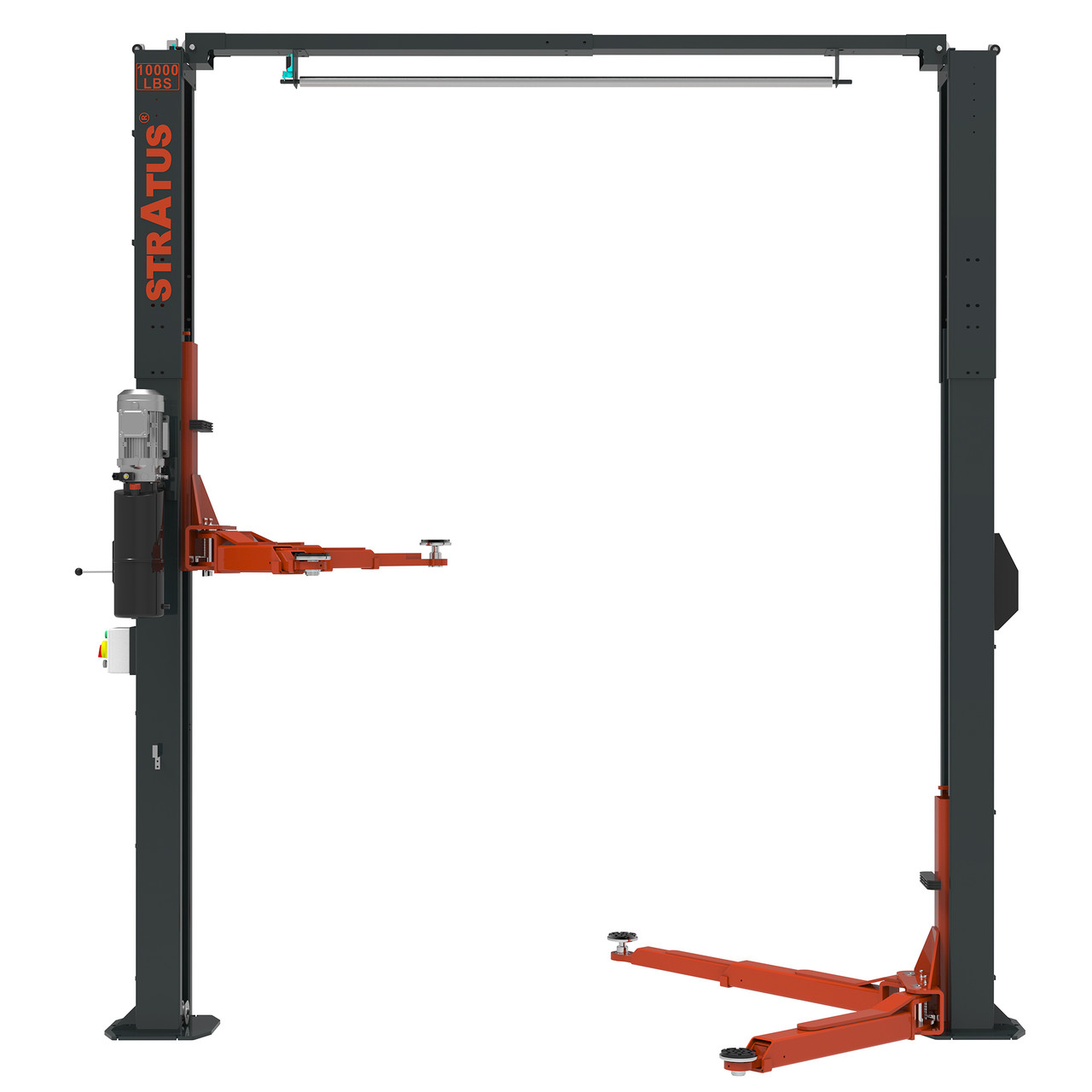

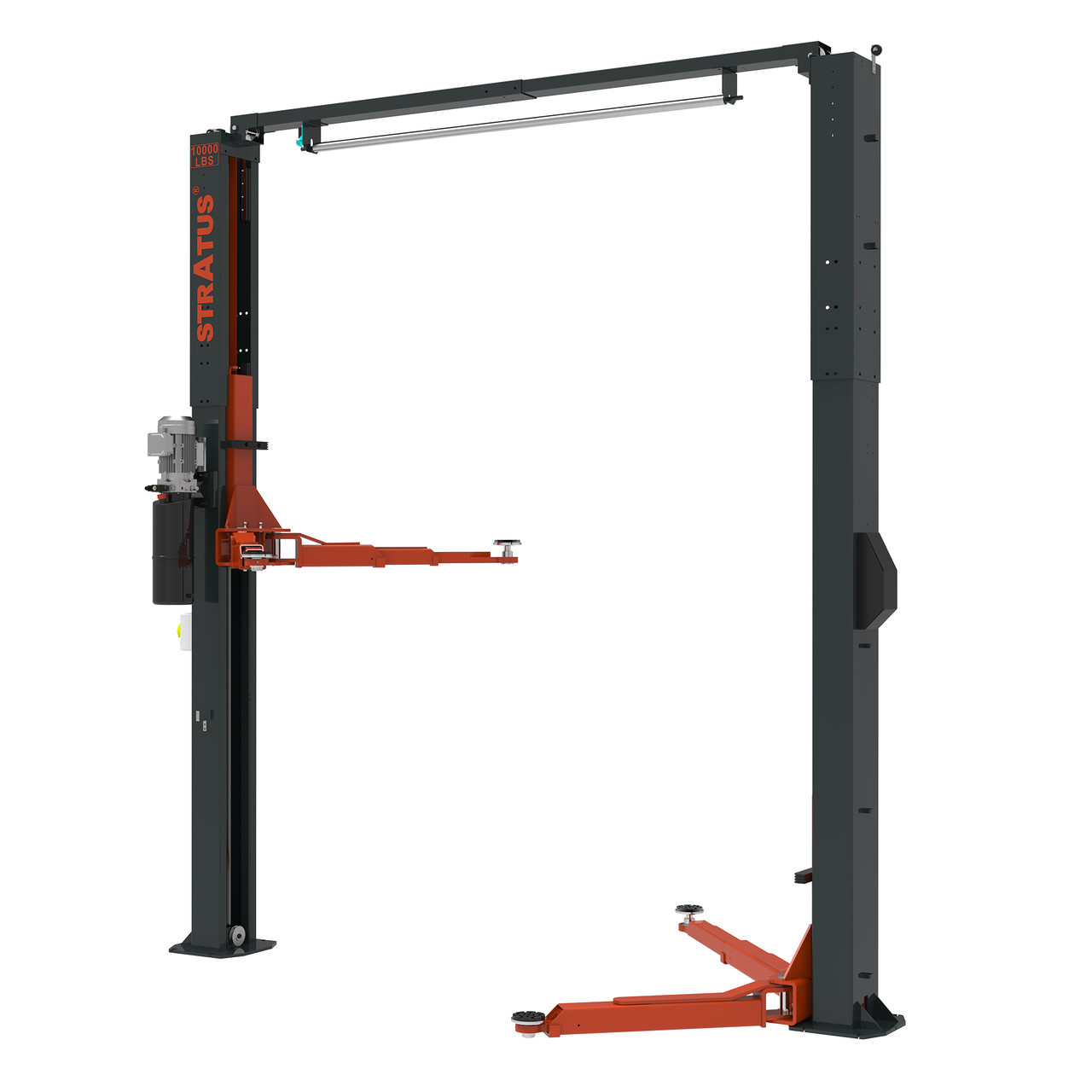

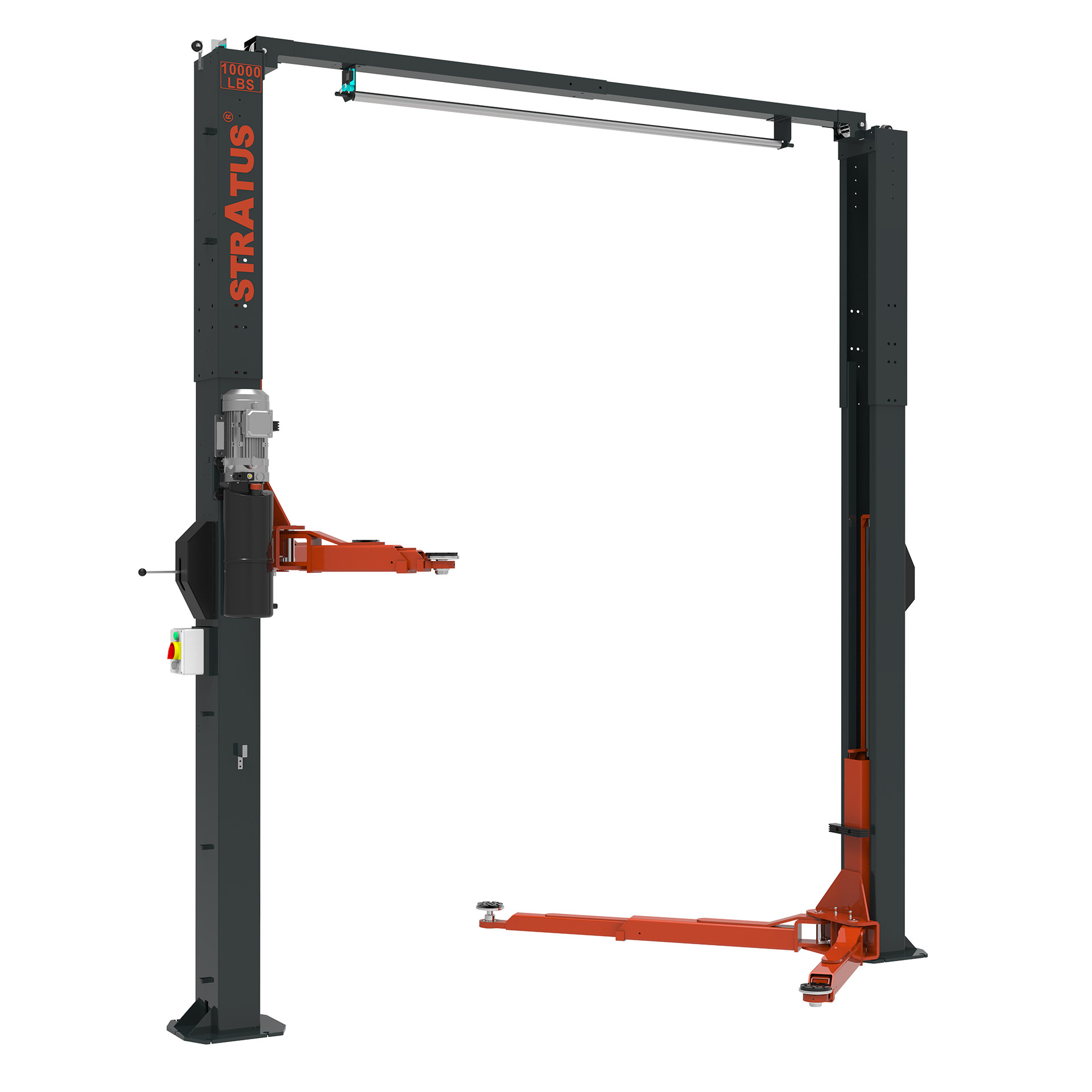

Stratus 2 Post Clear Floor Height Adjustable Direct Drive 10,000 lbs Capacity Single Point Manual Release Car Lift SAE-C10A

Check out our Stratus 2 Post Clear Floor Height Adjustable Direct Drive 10,000 lbs Capacity Single Point Manual Release Car Lift SAE-C10A! This advanced car lift not only provides an impressive 10000 lbs capacity, but also offers the benefit of a clear floor design, making it way easier to access undercar components without any obstruction. With its manual release and height adjustable features combined with a durable direct drive, this two post car lift simplifies your everyday mechanic work while ensuring top safety and reliability. Be it for your garage or workshop, this is an investment you won’t regret.
Important Notes

A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer

Product Features

• Height adjustable: 137 3/4” – 147 5/8″
  Heavy duty commercial grade
  Clear floor direct drive
  Single point manual release
  4 screw-up rubber pads
  4 x 4″ truck adapters
  2 x 2-stage arms & 2 x 3-stage arms
  2 top limiter switches
  Anti-surge valves
  Automatic arms restraints
  Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
  Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)

 Product Specifications

• Capacity
• 10,000 LBS
• Rise
• Max Lifting Height with Adaptors
• 74 7/8” (1902 MM)
• Min Lifting Height with Adaptors
• 7 15/16 (202 MM)
• Max Lifting without Adaptors
• 70 7/8” (1800 MM)
• Min Lifting without Adaptors
• 3 15/16” (100 MM)
• Rise Time
• ~50SEC

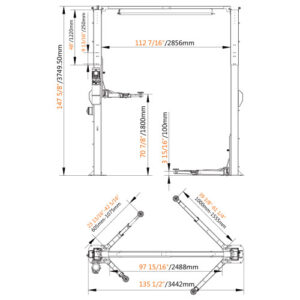

Outside Dimensions

Overall Height

• 137 3/4” – 147 5/8” (3499 MM -3749.50 MM)
• Overall Width
• 15 3/4” (400 MM)
• Overall Length
• 135 1/2” (3442 MM)

Inside Dimensions

Inside Columns

• 112 7/16” (2856 MM)
• Drive Thru
• 97 15/16” (2488 MM)

Arms

Front Arm Reach Max

• 61 1/4” (1555 MM)

Front Arm Reach Min

• 39 3/8” (1000 MM)

Rear Arm Reach Max

• 42 5/16” (1075 MM)

Rear Arm Reach Min

• 23 13/16” (605 MM)

Power Unit: Motor 3 HP, 220V, 60 HZ, 1ph

Oil: AW32 or AW46

Breaker: 30A

Shipping Weight: 1,674 LBS

Dimension: 110” L * 45” W * 24” H

Concrete Requirements: 6” – 3000 PSI
