Stratus 4 Post 8,000 lbs Capacity Manual Release Compact Storage Parking Car Lift With Castors SAE-P48C

$4,388.00 USD

2 People watching this product now!

Unleash the capabilities of your garage with the Stratus 4 Post 8000 lbs capacity parking car lift. Thoughtfully designed to be compact, this impressive four po…

SKU: SAE-P48C Categories: , ,

Description

Unleash the capabilities of your garage with the Stratus 4 Post 8000 lbs capacity parking car lift. Thoughtfully designed to be compact, this impressive four post parking lift delivers robust power in a sleek and space-saving design. Its manual safety release mechanism ensures utmost safety while handling your hefty items. The Stratus SAE-P48C model also comes with sturdy castors offering ease of mobility. All these combined gives you a remarkable versatile compact storage solution, ready to facelift your garage!

Important Notes

  • A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
  • Sales tax will be automatically waived for out of Texas Buyers
  • Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
  • Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer

Product Features

  • Manual safety lock release
  • Space-Saving Compact Design
  • Hassle-free lock mechanism release system
  • Relocatable power unit
  • Cable failure protection
  • Multi-level locking positions (13 Locking Positions)
  • Mechanic locks automatically engaged into position in ascending process
  • Skid proof diamond platform
  • Included 1 jack tray, 1 castor kit (set of 4), 4 drip trays
  • Optional sliding bridge jack SAE-BJ5 (Sold Separately)
  • Imbalance protection

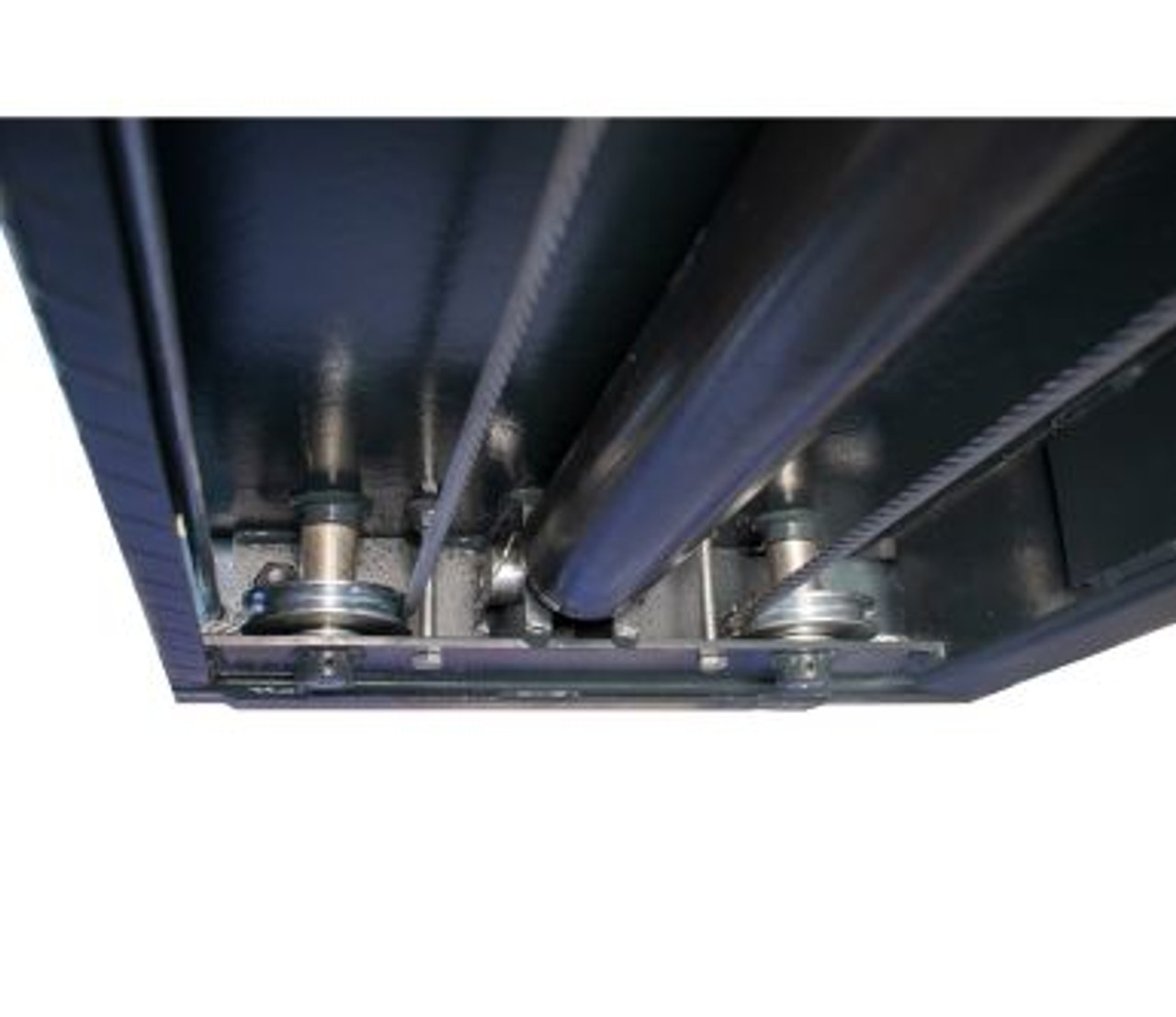

  • Self-lubricating pulleys and pre-tensioned cable
  • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
  • Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)

Product Specifications

Capacity

8,000 LBS

Rise

Min lifting height 4 15/16” (125 MM)
Max lifting height 72 5/8” (1845 MM)
Lifting Time ~ 50SEC
Clearance Height 68 5/16” (1736 MM)

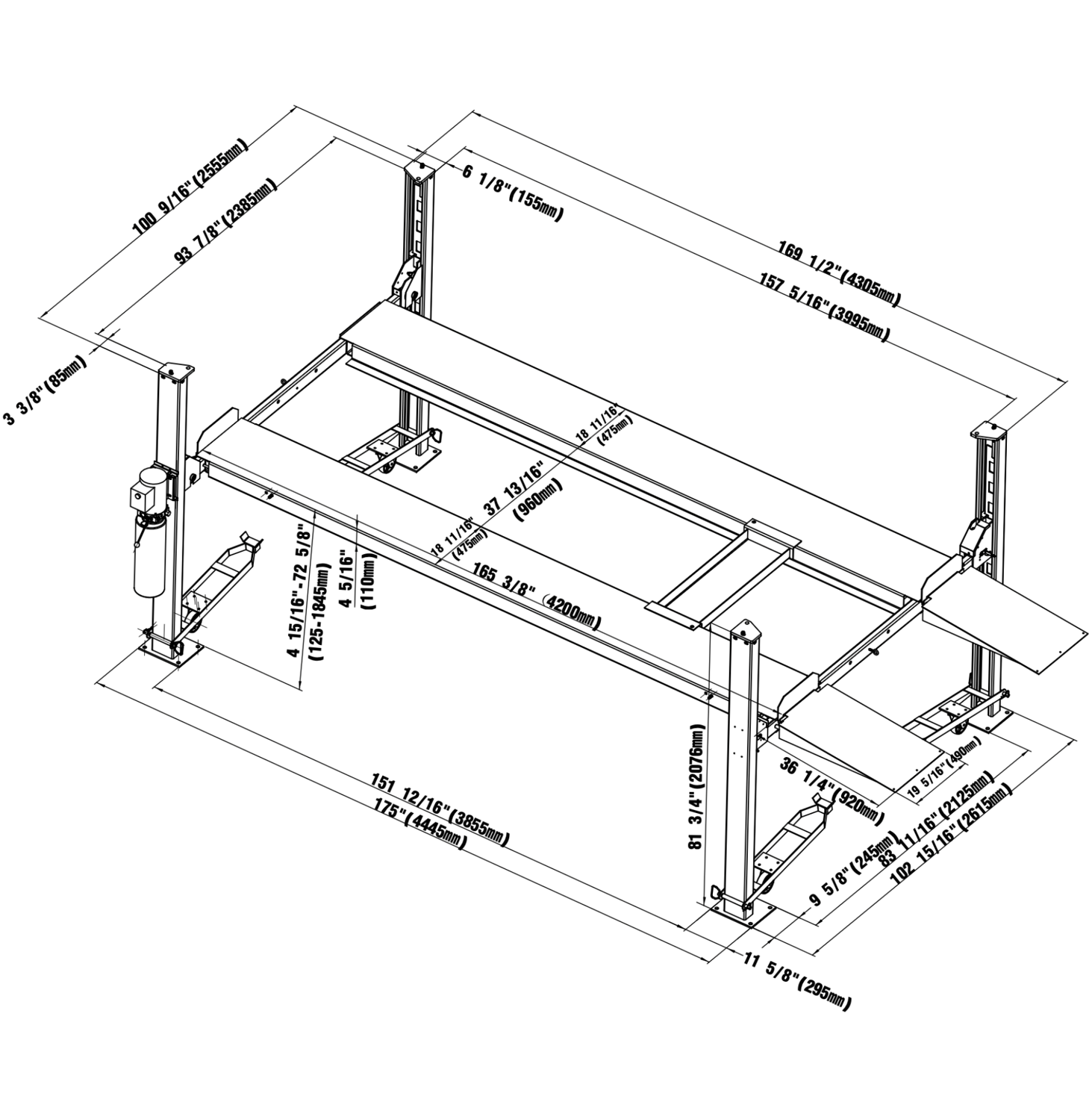

Outside Dimensions

Overall Height 81 3/4” (2076 MM)
Overall Width 102 15/16” (2615 MM)
Overall Length w/ ramps 211 1/4” (5366 MM)
Overall Length w/o ramps 175” (4445 MM)

Inside Dimensions

Width columns 93 7/8” (2385 MM)
Drive Thru 83 11/16” (2125 MM)

Runways

Runway width 18 11/16” (475 MM)
Runway Length 165 3/8” (4200 MM)
Between Runways 37 13/16” (960 MM)

Power Unit

Motor 3 HP, 110V, 60 HZ, 1ph
Oil AW32 or AW46
Breaker 30A

Shipping

Weight 1,823 LBS
Dimension 167” L * 22” W * 30” H
