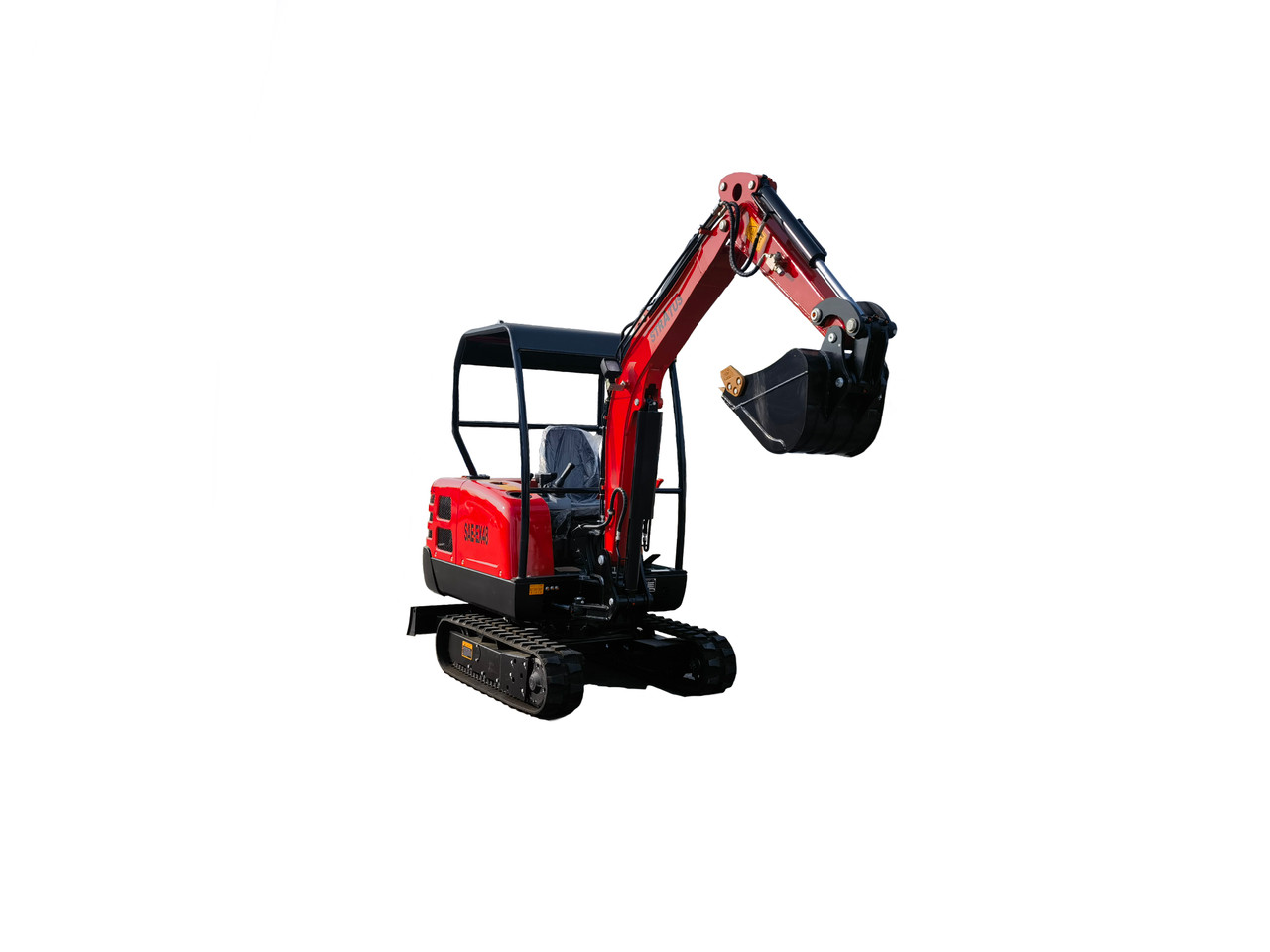

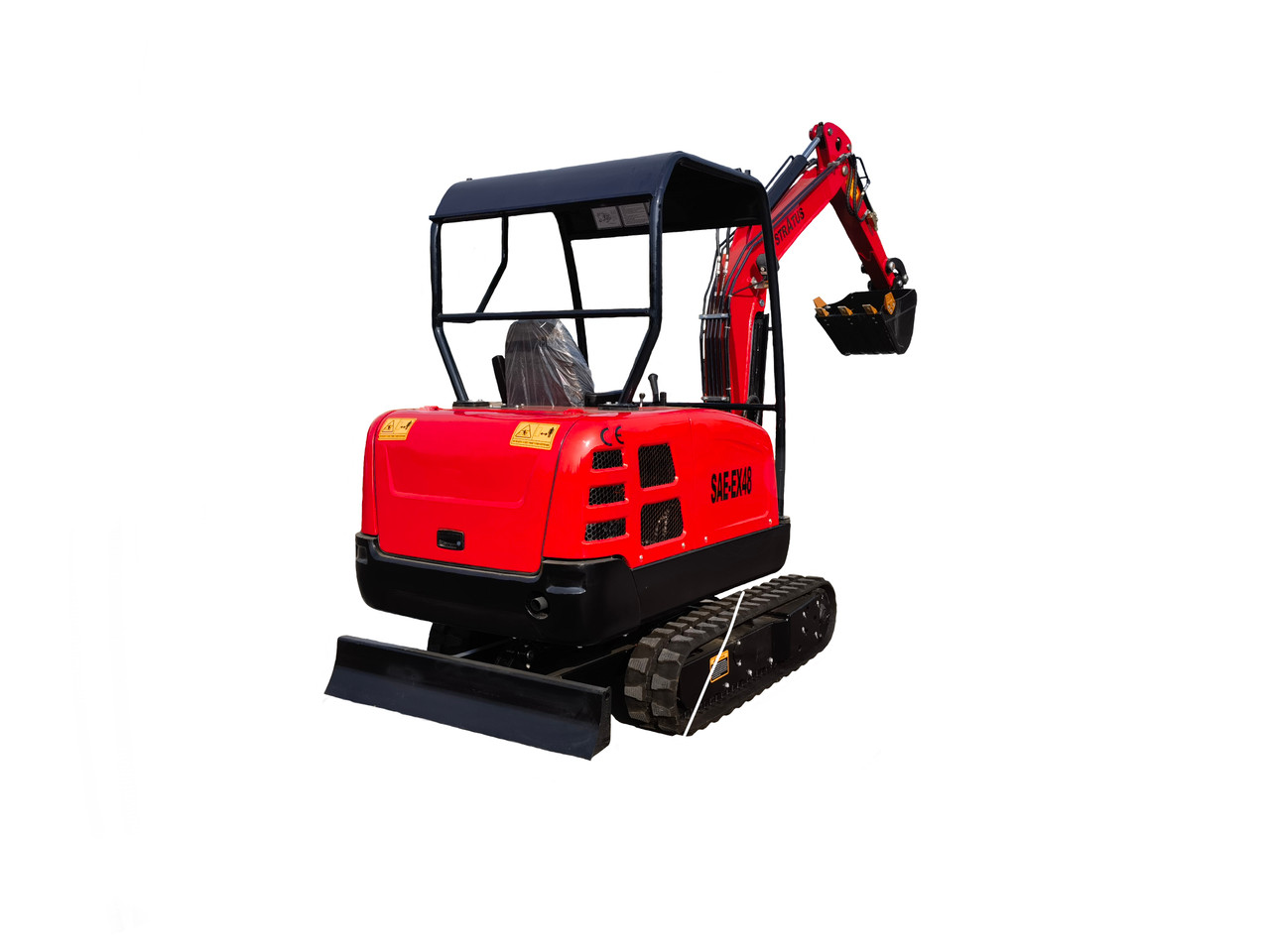

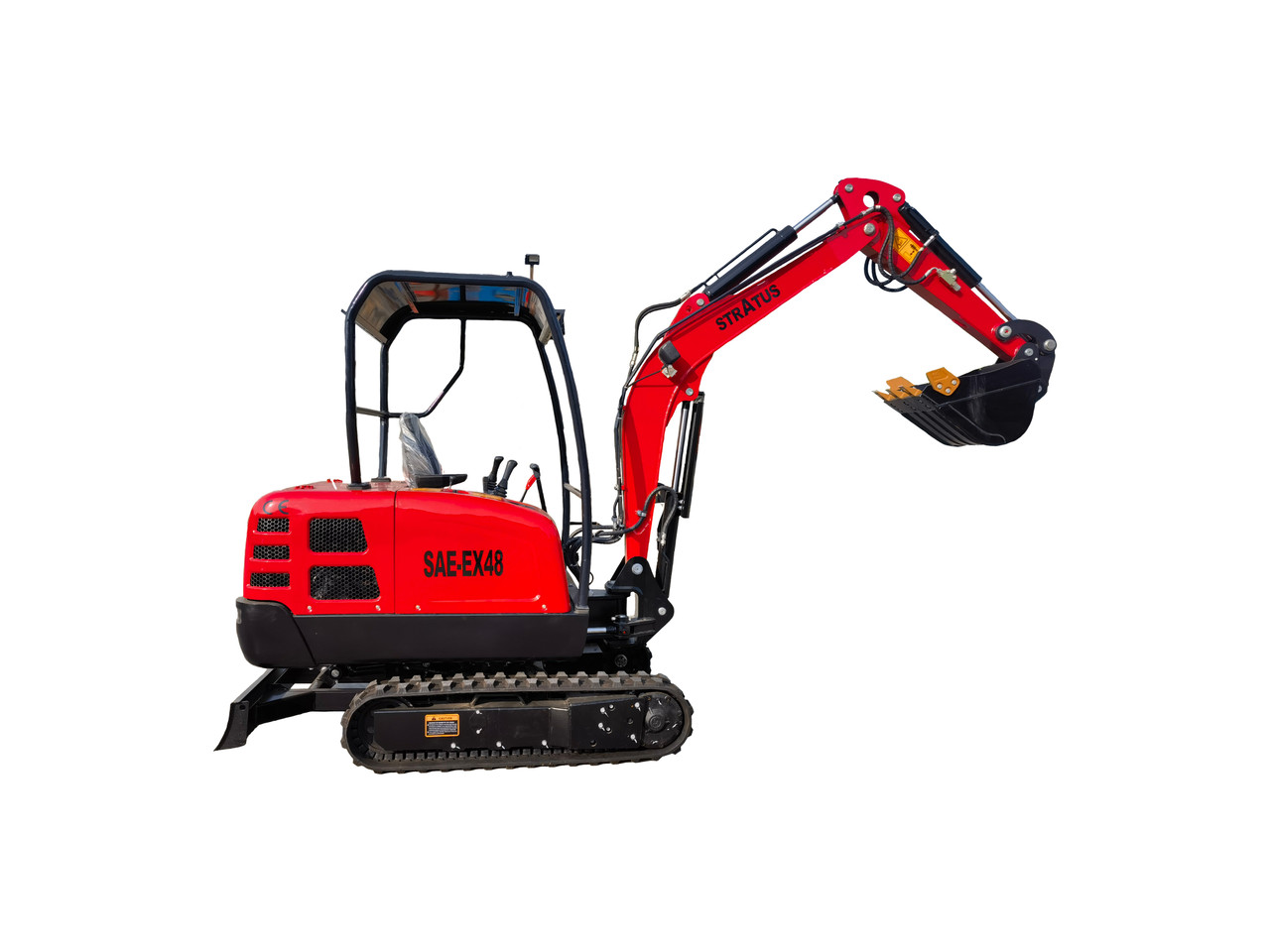

Stratus 4,800 LBS Capacity Excavator – SAE-EX48

This excavator comes with various configurations with big swing arm, crushing pipeline. Also has optional cab, optional air conditioner system, and a variety of auxiliary equipment. The structural parts are all made of high-strength manganese steel, welded by robots.

Features

• Engine: KUBOTA – EPA Certified
• Comes with various configurations with big swing arm, crushing pipeline
• Optional cab, optional air conditioner system, and a variety of auxiliary equipment
• Tool box included
• Stable and reliable, easy maintenance
• Warranty: 1 year

Finish

• Granite Gray (RAL 7026) + Rein orange (RAL 2004)

Technical Specification

• Engine: KUBOTA
• Rated Power: 18.8 HP
• Bucket Capacity: 0.131 yd³ (0.1 ㎥)
• Max Digging Radius: 172″ (4370mm)
• Max Digging Depth: 96″ (2450mm)
• Max Digging Height: 145 1/2″ (3700mm)
• Max Dumping Height: 90″ (2290mm)
• Operation Weight: 4,850 lbs. (2.2 Metric Ton)
• Travelling Speed: 1.74-1.86 miles / H (2.8-3.0 km/H)
• System Pressure: 20MPa
• Shipping Size: 161″L * 51″W * 90″H

Standard Parts

• One toolbox contains one filter, one tool box and one grease gun
