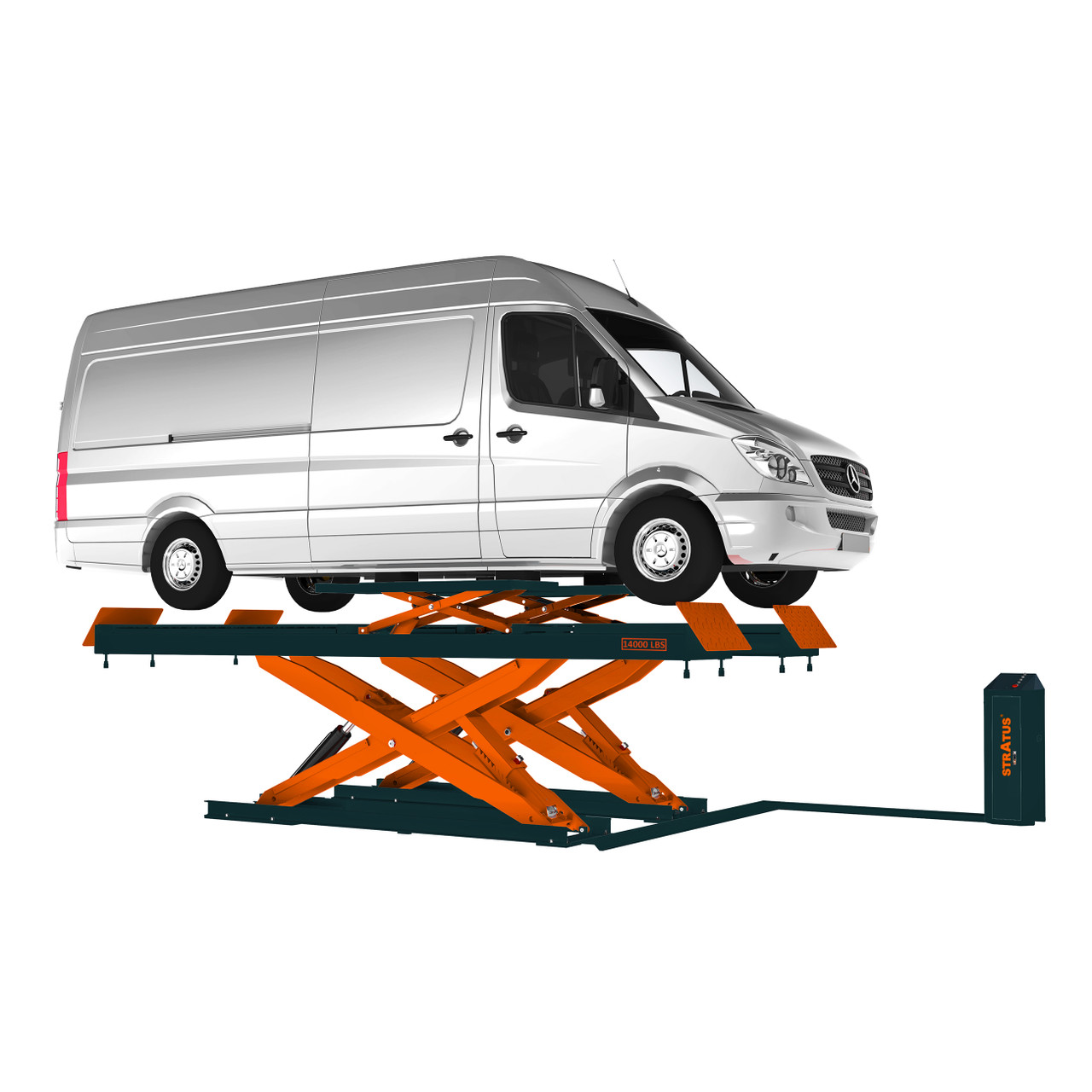

Stratus Commercial Grade 14000 LBS Alignment Scissor Car Lift With 2 Bridge Jacks SAE-FS14AP

This low-profile commercial grade alignment scissor lift is On-Ground surface mount or In-Ground flush mount design, comes with 2 bridge jacks and 2 turn table plates, it is pneumatic safety lock release with 213 9/16″ long platform for long vehicles, easy to operate and maintain. It is suitable to hold 14,000 lbs. or less, ideally for inspection, repair and maintenance of various types of vehicles.

Important Notes

• A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
• Sales tax will be automatically waived for out of Texas Buyers
• Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
• Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
• There is an In-House pick-up discount of $300

Product Features

• Commercial grade open center full rise alignment scissor lift
• Equipped with 2 turn plates and 2 bridge jacks
• Pneumatic safety lock release
• 213 9/16″ long platform for longer vehicles
• 4pcs LED lights
• In-ground flush mount or on-ground surface mount
• Dual air cylinders safety structure & 4 hydraulic cylinders drive design
• Including 11 lock positions, 1 5/8″ (42MM) between each lock position.
• Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
• Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)

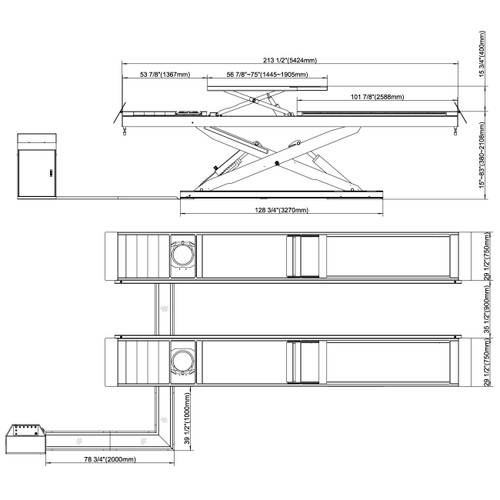

Product Specifications

Model	FS14AP
Lifting Capacity	14,000 LBS
Lifting Time	72 SEC
Lifting height	82 11/16”
Overall Length	213 9/16″
Overall Width	64 15/16”
Minimum Height	14 15/16”
Motor	3 HP, 110V or 220V, 60 HZ, 1ph
Control Panel Weight	366 LBS
Control Panel Container	28″L X 22″W X 51″H
Platform Weight	2 of 5277 LBS
Platform Container	2 of 219″ X 35″W X 22″H
