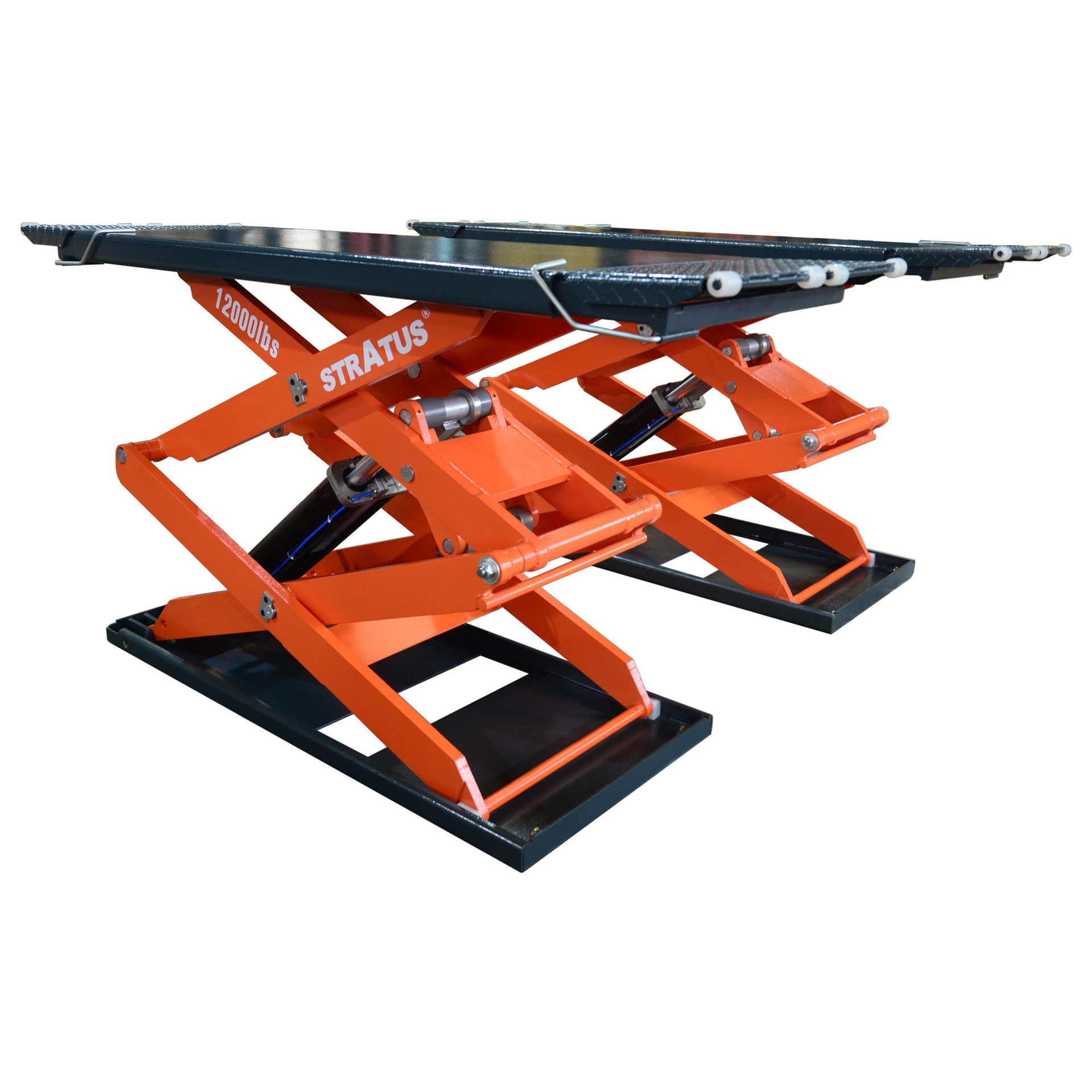

Stratus Commercial Grade On-Ground or In-Ground Mount Low Profile Full Rise Scissor Car Lift SAE-UT12000
$9,975.00 USD
4
People watching this product now!
This low-profile double scissor lift comes with On-Ground surface mount or In-Ground flush mount design, it is pneumatic safety lock release with overload prote…
- There is a $250 Surcharge for the following states: OR, WA, ID, MT, ND, SD, and ME
- Is this being shipped to a residential address? An additional $150 will be charged to residential
Description
This low-profile double scissor lift comes with On-Ground surface mount or In-Ground flush mount design, it is pneumatic safety lock release with overload protection, easy to operate and maintain. Full rise scissor lift is suitable to hold 12,000 lbs. or less, ideally for inspection, repair and maintenance of various types of vehicles.
Important Notes
- A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
- Sales tax will be automatically waived for out of Texas Buyers
- Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
- Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
- There is an In-House pick-up discount of $380
Product Features
- Commercial grade open center full rise low profile scissor lift
- 2 in 1 design – On-Ground surface mount or In-ground flush mount (see detailed foundation plan)

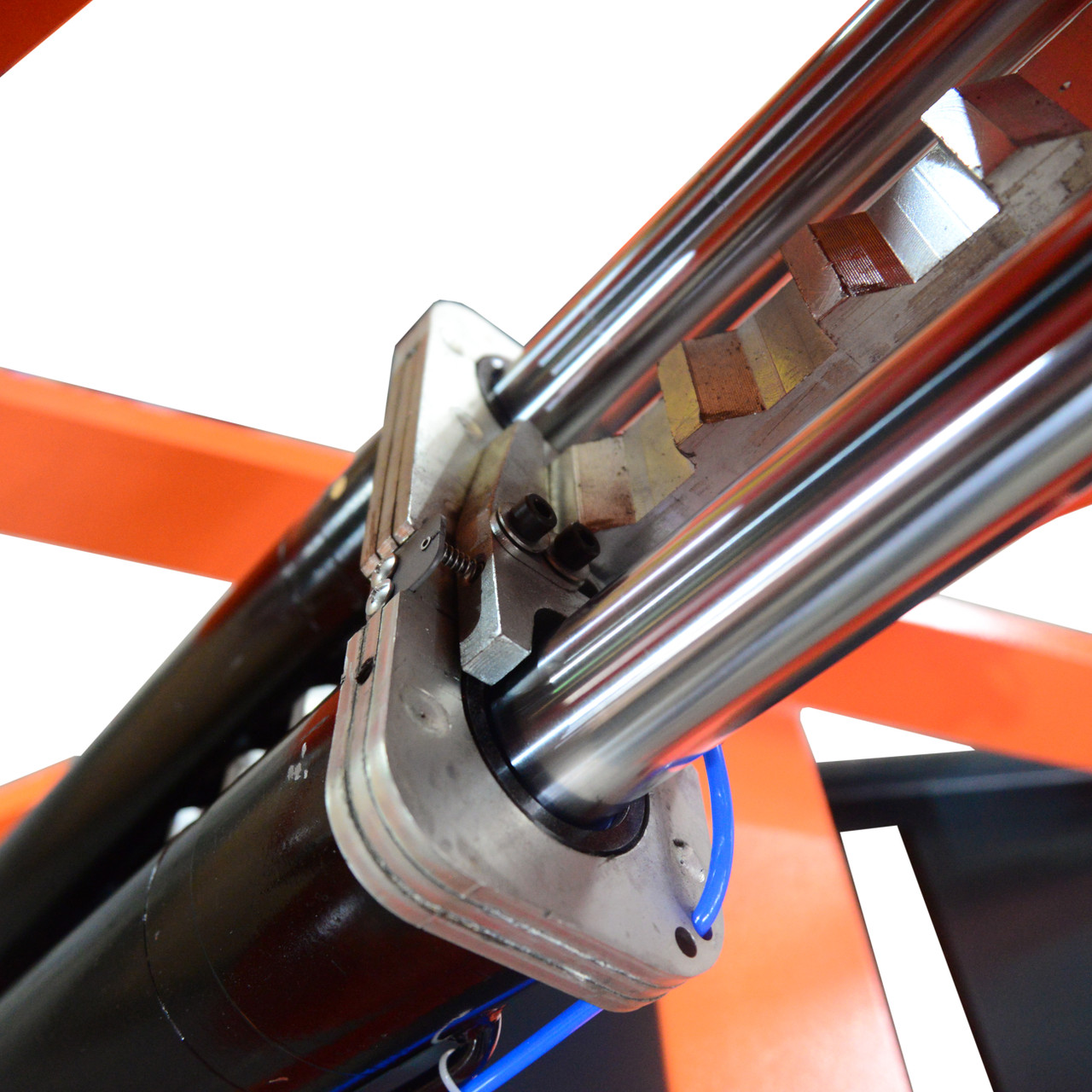

- Pneumatic safety lock release
- Durable cylinders with anti-surge valves
- Overload protection

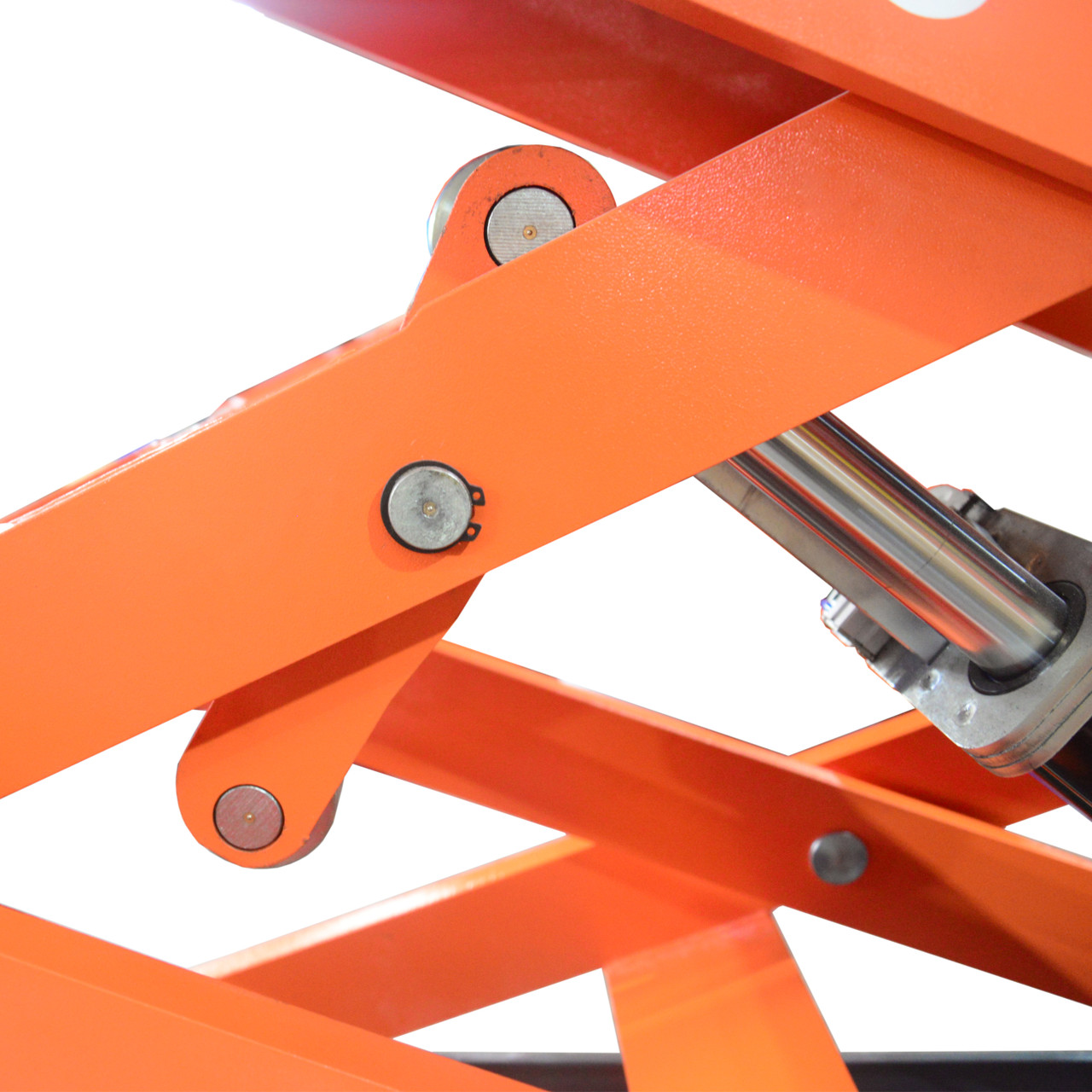

- Alloy solid steel X structure, good rust resistance and not easy to deformation

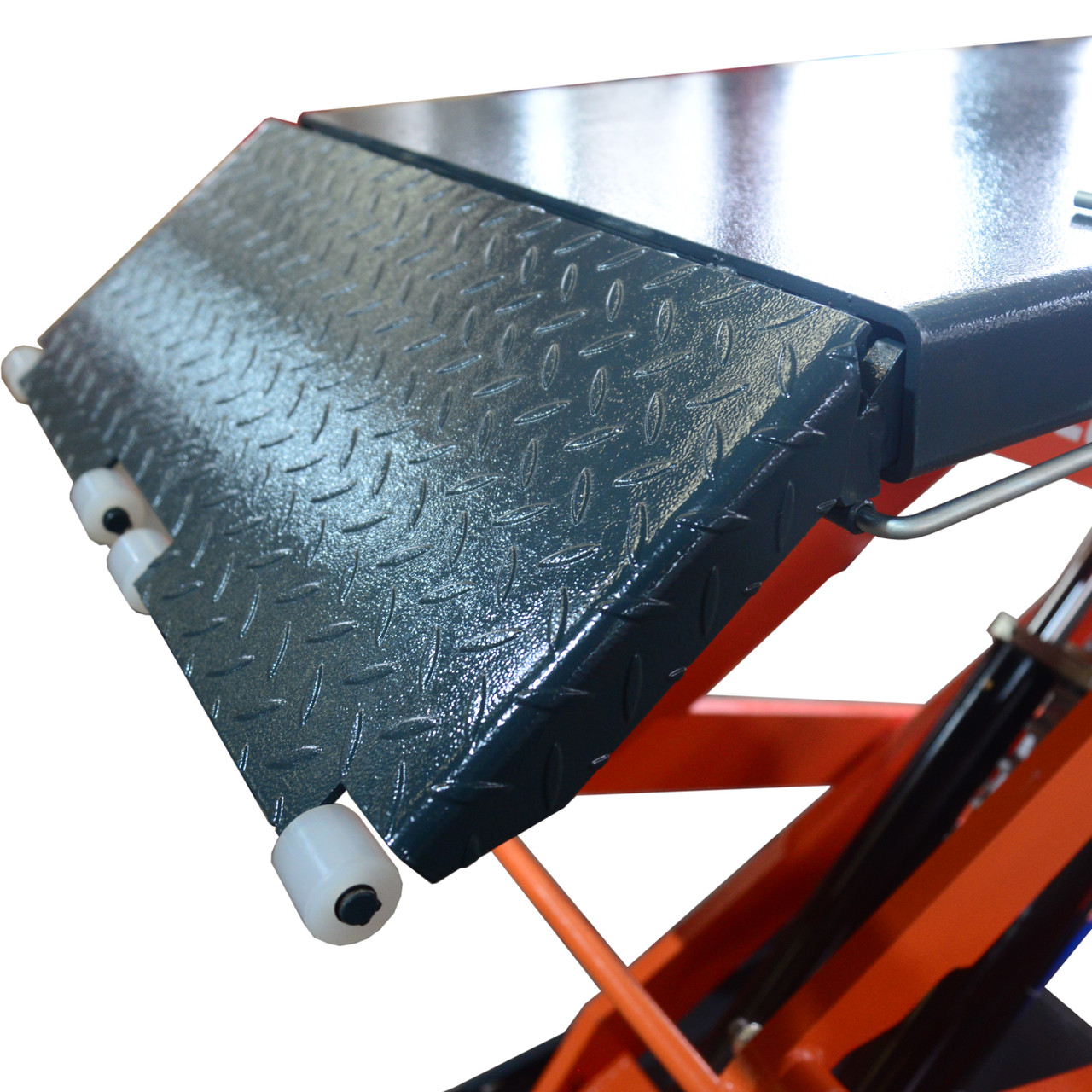

- Ramp can be used as platform extension suitable for different length of chassis
- Wear-resisting bearings

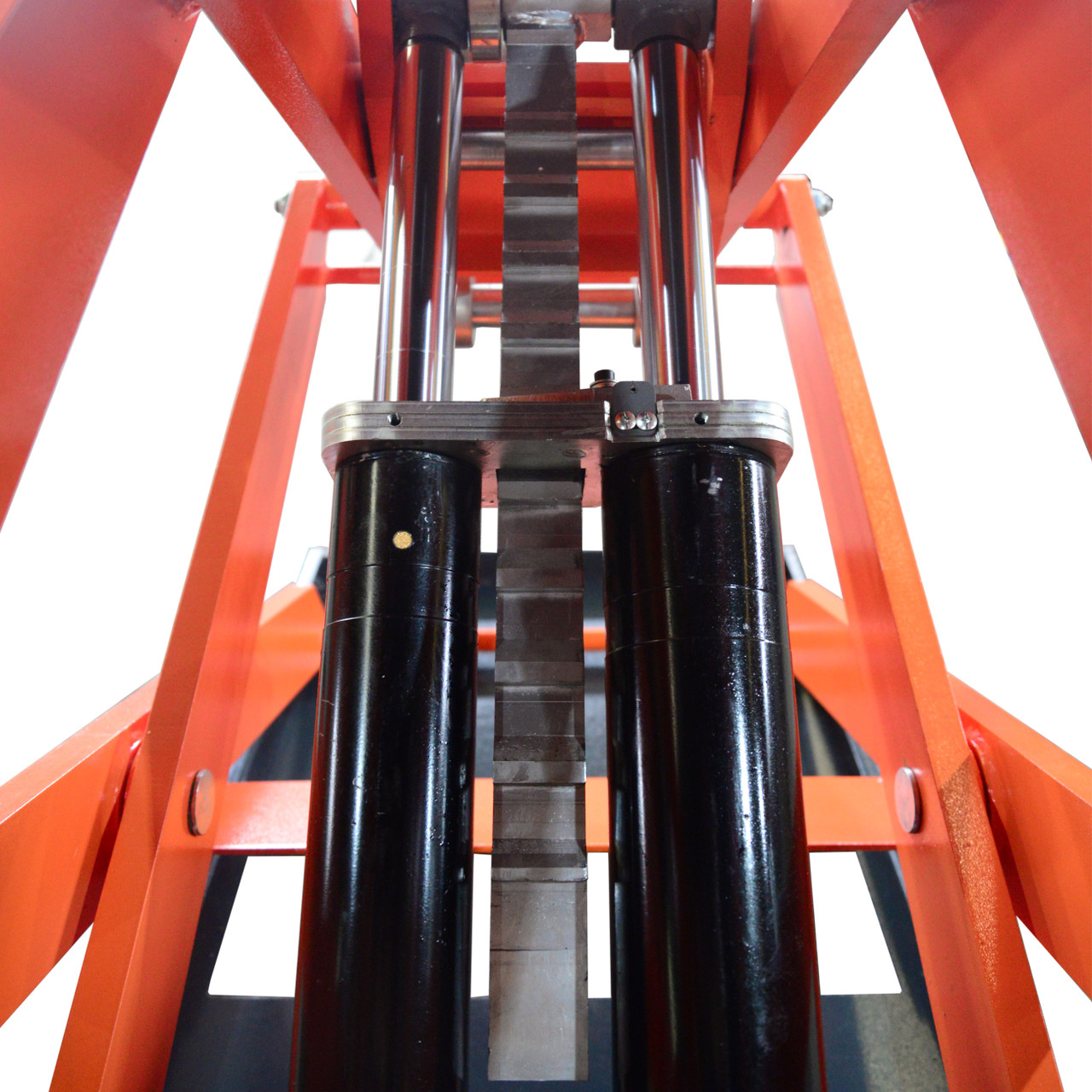

- 10 lock position, each lock position is 2″ (50mm) apart
- 8 pcs rubber pads included, 4 of each 1 1/2″ & 4″
- Low profile design, minimum height is only 5 1/2″

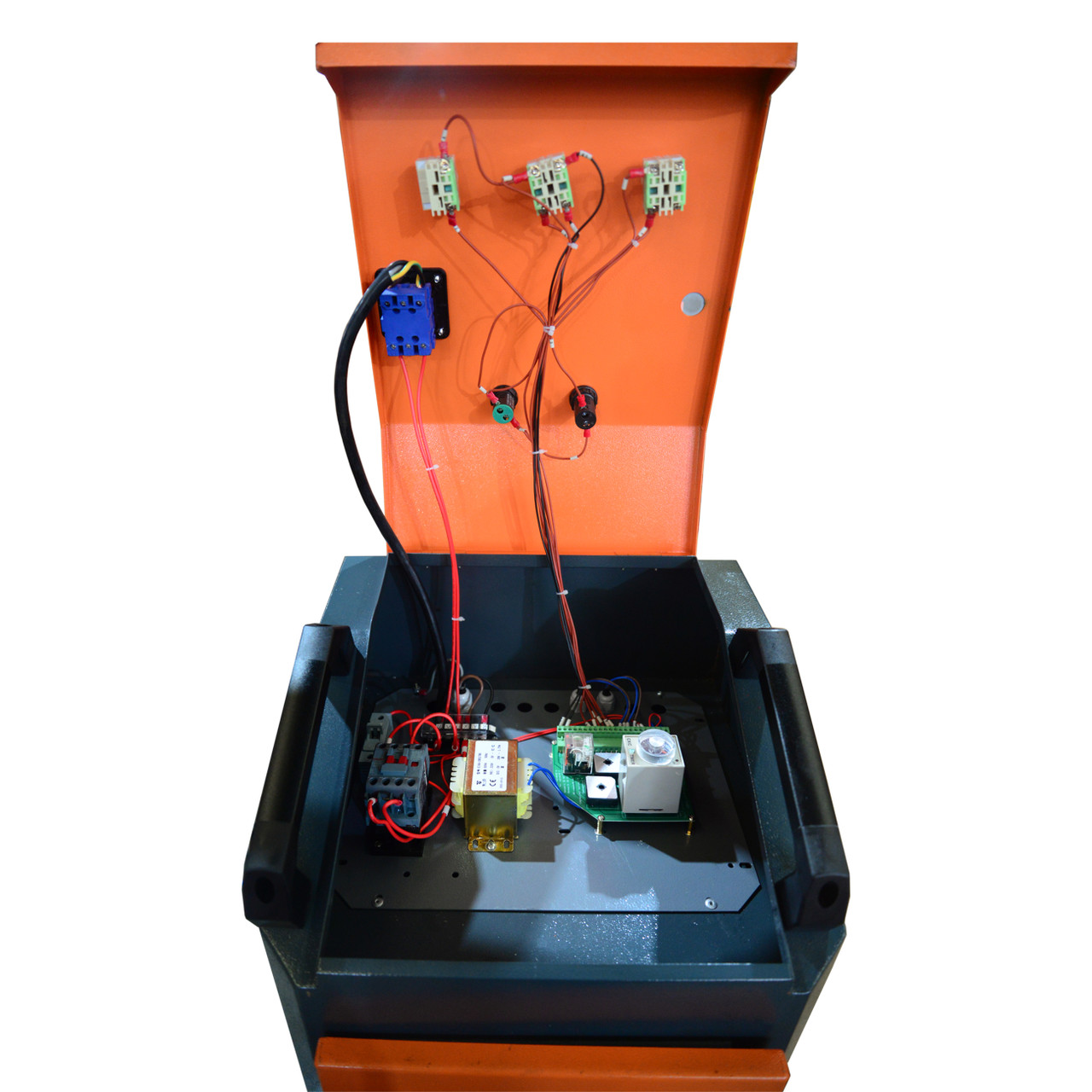

- 24V low voltage control system
- Platforms can be extended for long vehicles
- Self-lubricated bushing and bearing
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Product Specifications
| Model | UT12000 |  |
| Capacity | 12,000 | |
| Lifting Time | ~90SEC | |
| Max Height | 74 13/16” (1900 MM) | |
| Min Height | 5 1/2” (140 MM) | |
| Runway Length without Ramps | 61 7/16” (1560 MM) | |
| Runway Length with Ramps | 85 1/16” (2160 MM) | |
| Overall Width | 90 1/2” (2300 MM) | |
| Runway Width | 29 1/2” (750 MM) | |
| Between Runway | 31 1/2” (800 MM) | |
| Motor | 4 HP, 220V, 60 HZ, 1ph | |
| Oil | AW32 or AW46 | |
| Breaker | 30A | |
| Platform Weight | 3,108 LBS | |
| Platform Dimension | 91” L * 31” W * 18” H | |

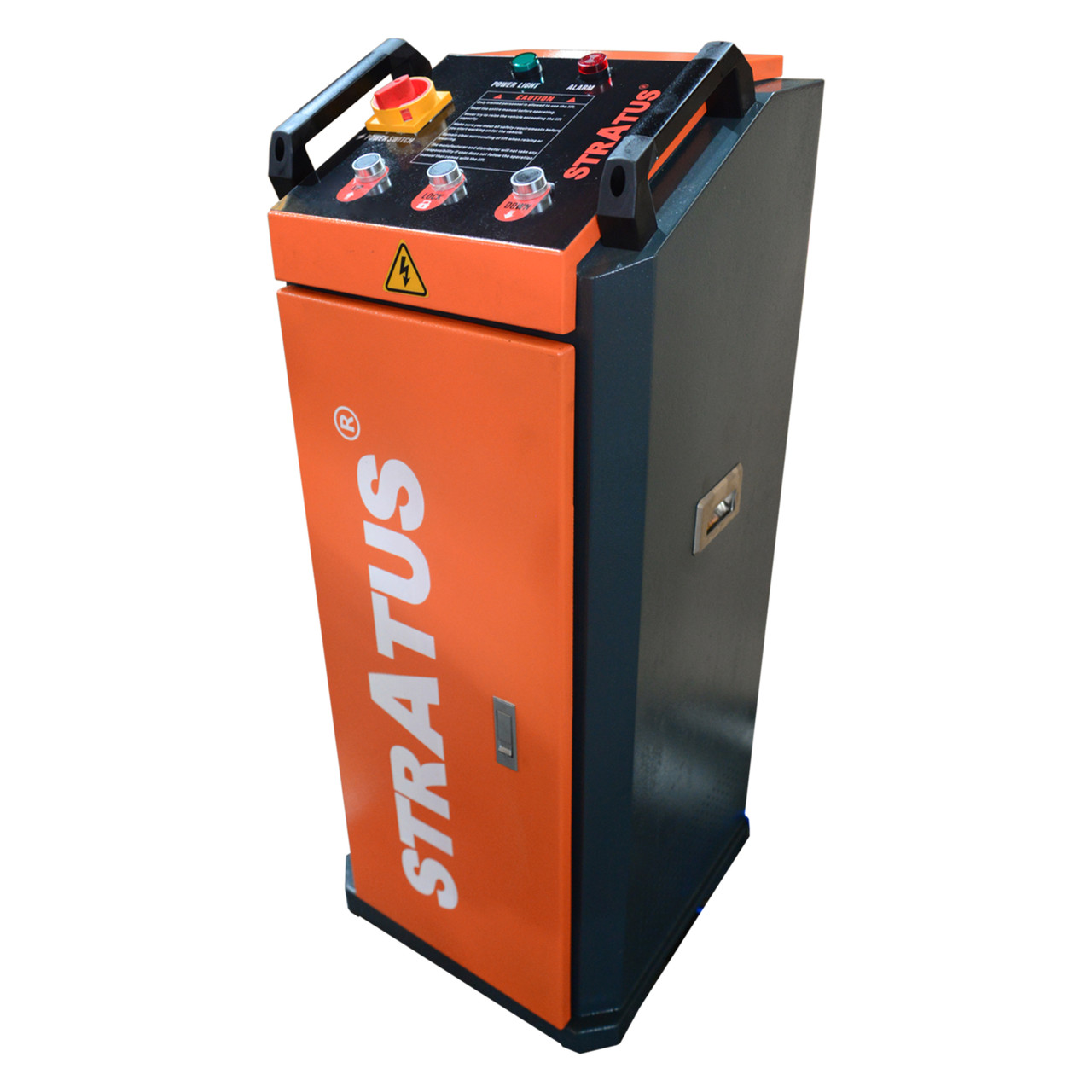

| Control Panel Weight | 198 LBS | |
| Control Panel Dimension | 44” L * 18” W * 22” H |
