Stratus Compact Enclosed 4 Post 9000 lbs Capacity Manual Release Storage Parking Car Lift With Castors SAE-P49C

$6,409.00 USD

2 People watching this product now!

Upgrade your garage with the space-saving and versatile Stratus Auto Equipment Compact Enclosed 4 Post Car Lift! Engineered with a remarkable 9000 lbs capacity,…

SKU: SAE-P49C Categories: ,

Description

Upgrade your garage with the space-saving and versatile Stratus Auto Equipment Compact Enclosed 4 Post Car Lift! Engineered with a remarkable 9000 lbs capacity, this car lift is capable of handling a wide range of vehicles, from small sedans to larger SUVs. The manual release mechanism ensures simple and safe operation, while the built-in castors provide effortless mobility, allowing you to conveniently position the lift wherever required. Maximize your storage capacity and transform your workspace with the Stratus Auto Equipment Compact Enclosed 4 Post Car Lift With Castors!

Important Notes

  • A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
  • Sales tax will be automatically waived for out of Texas Buyers
  • Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
  • Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer

Product Features

  • 9,000 LBS lifting capacity.

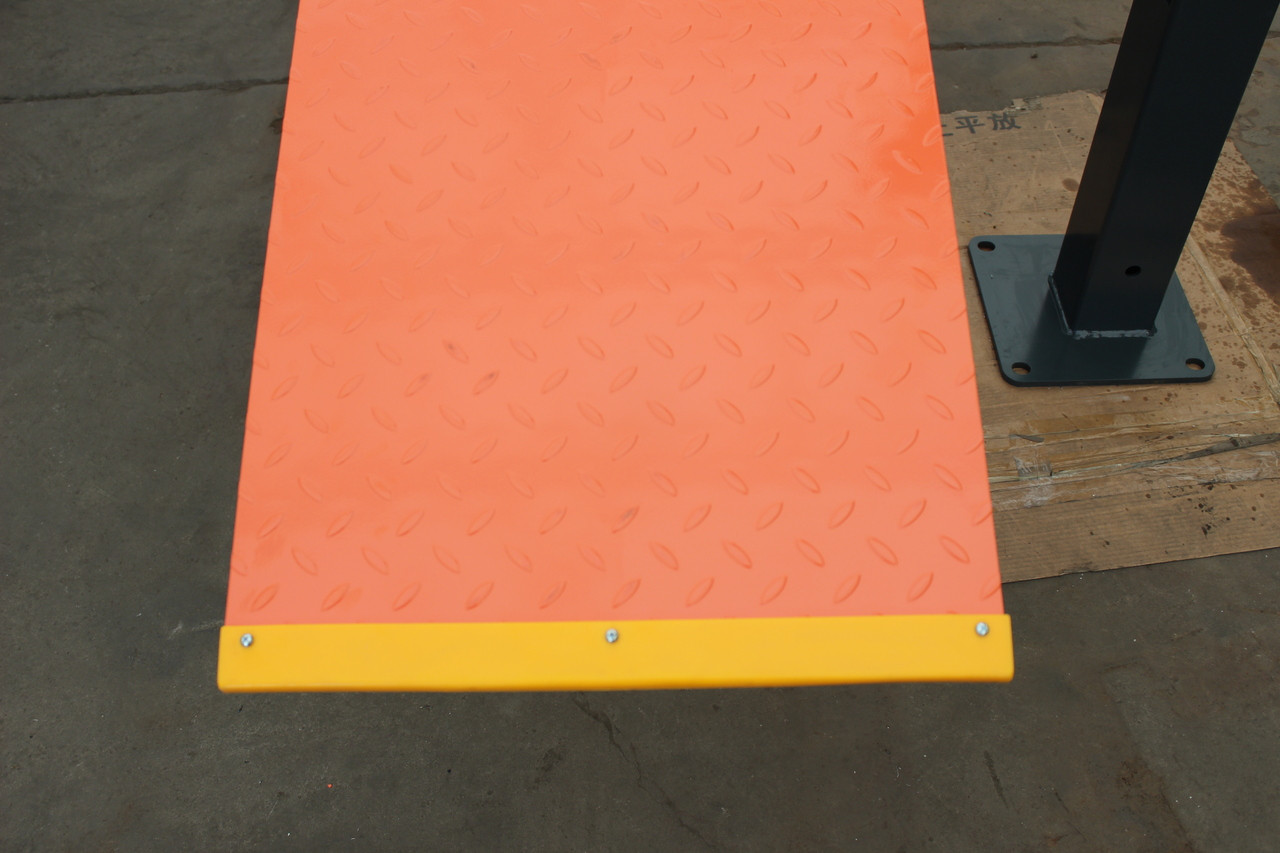

  • Optional Aluminum Ramps

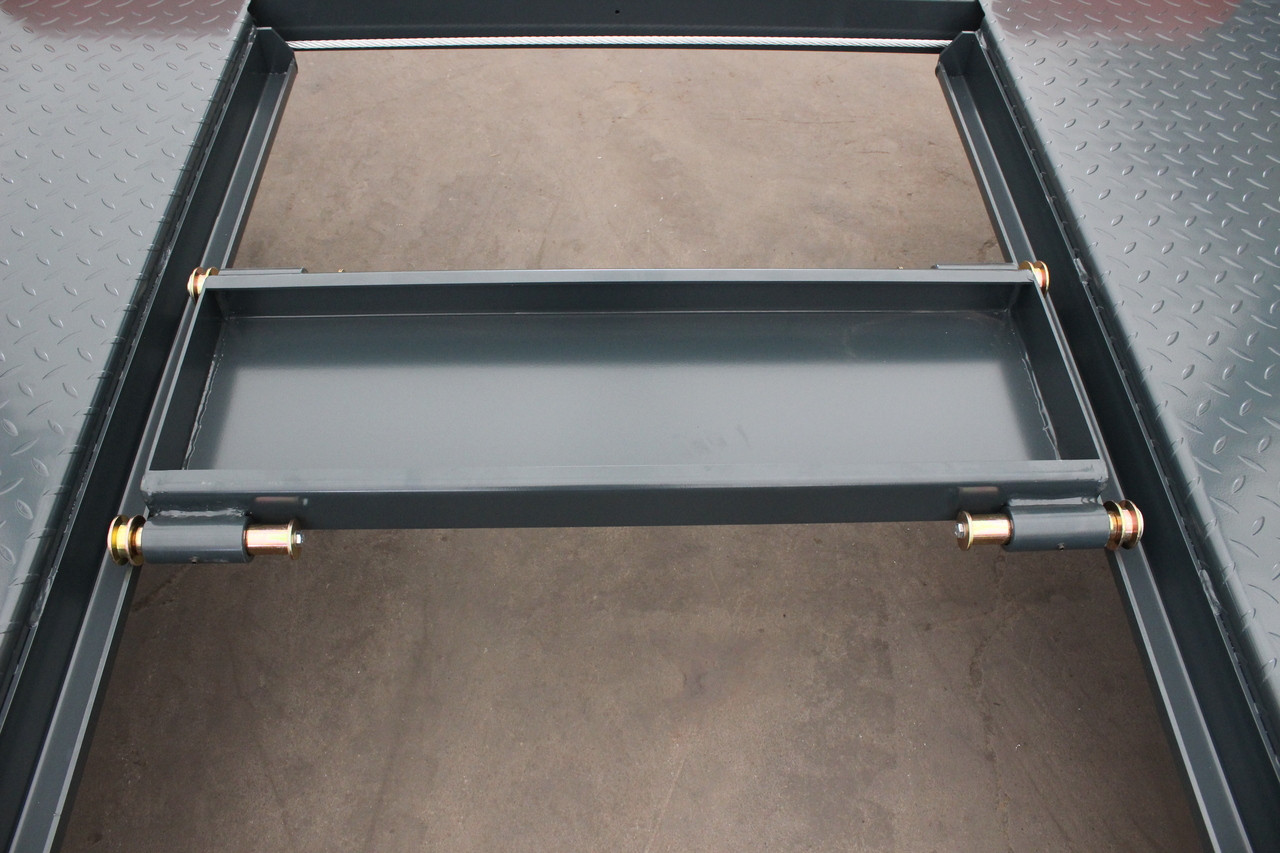

  • Optional Rolling Jack Tray

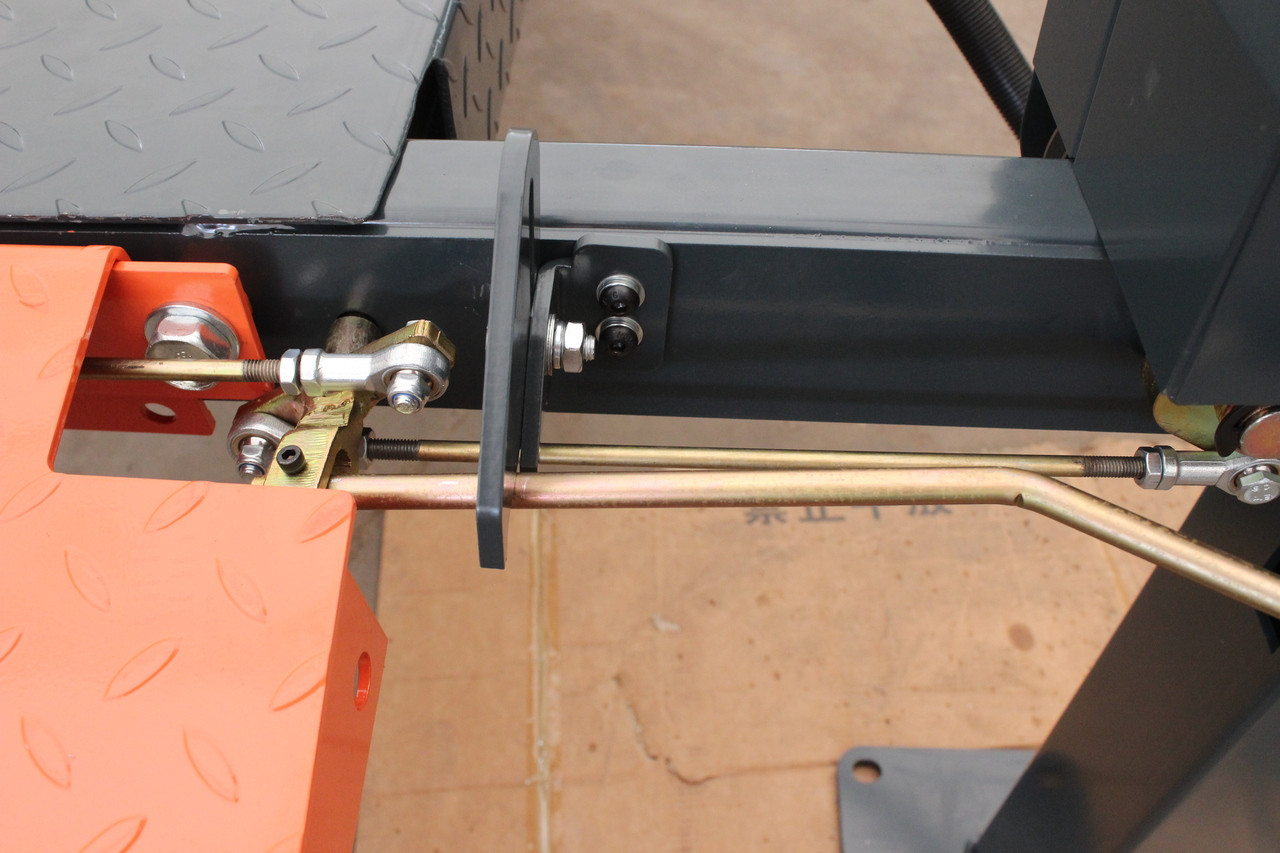

  • Manual single-point safety lock release.
  • Mechanical locks automatically engaged into position in ascending process.
  • Out of level protection, safe and reliable.

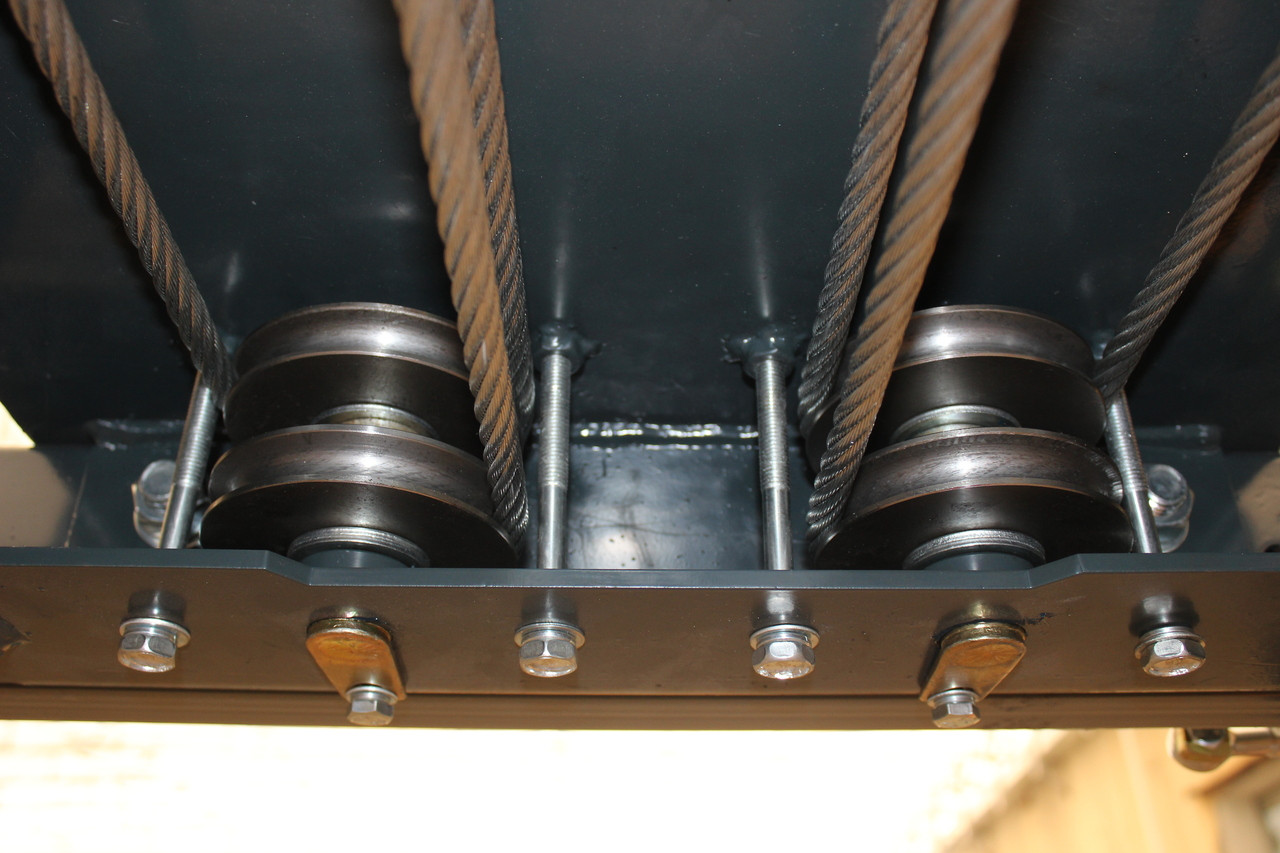

  • Self-lubricating pulleys and pre-tensioned wire rope for extended service life.
  • Skid proof diamond platform.
  • Standard with oil trays (3pcs).
  • Mobile caster kits (4pcs).
  • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity

Product Specifications

Capacity

9,000 LBS

Rise

Min lifting height 5″ (127 MM)
Max lifting height 73 11/16” (1872 MM)
Lifting Time ~ 45SEC
Clearance Height 69 3/8″ (1745 mm)

Outside Dimensions

Overall Height 97 1/2” (2476 MM)
Overall Width 109 5/8” (2784 MM)
Overall Length w/ ramps 208” (5283 MM)
Overall Length w/o ramps 176 11/16” (4488 MM)

Inside Dimensions

Width Between Columns 94 13/16” (2409 MM)
Drive Thru 86” (2184 MM)

Runways

Runway width 18 11/16” (2419 MM)
Runway Length 165 3/8” (4200 MM)
Between Runways 37” (940 MM)

Power Unit

Motor 3 HP, 110V, 60 HZ, 1ph
Oil AW32 or AW46 / ~2.5 gallons
Breaker 20A

Shipping

Weight 1,797 LBS
Dimension 168” L * 22” W * 29” H
