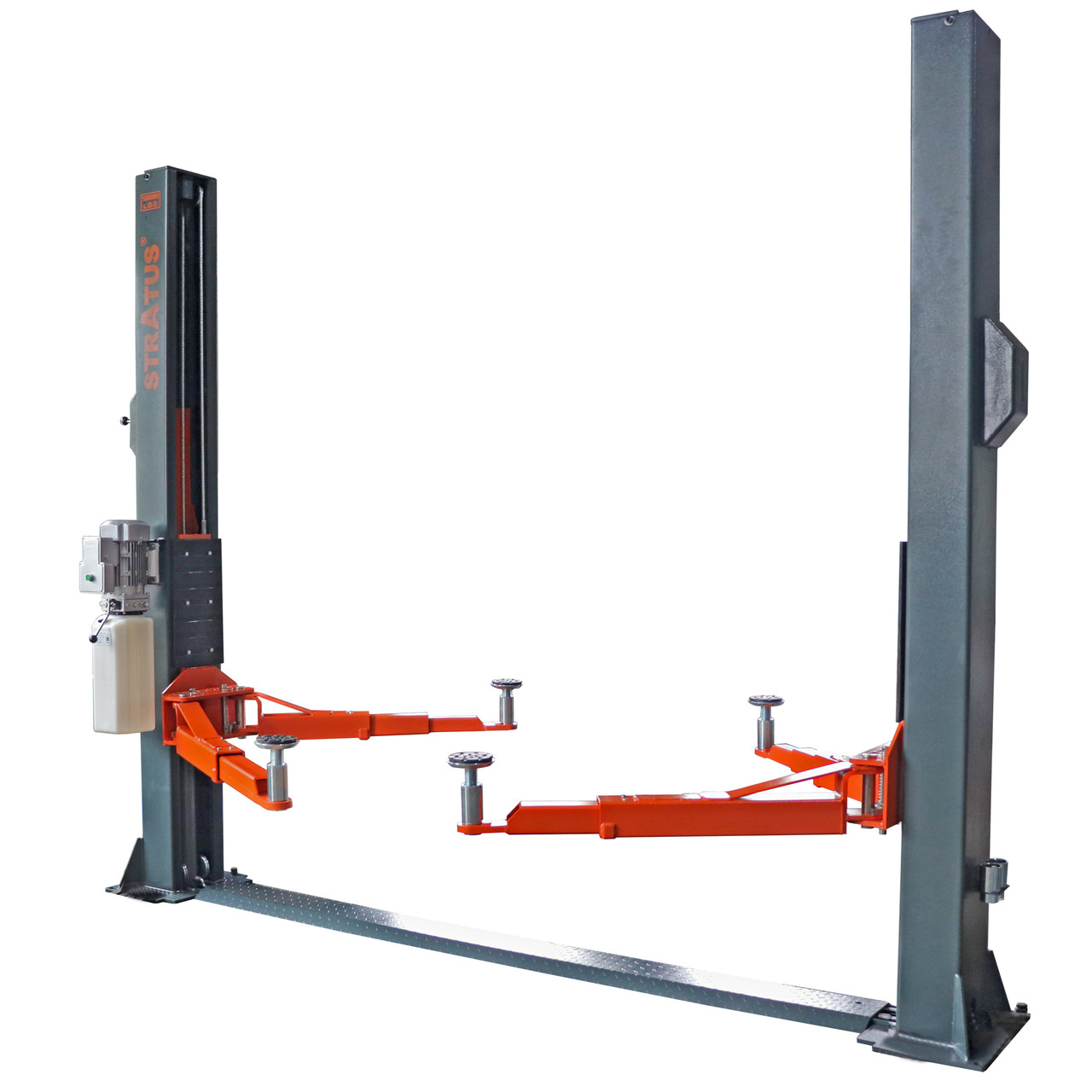

Stratus Pro Floor Plate Open Top 10,000 lbs Capacity Single Point Manual Release Car Lift SAE-F10P
$4,015.00 USD
Stratus Pro Floor Plate Open Top 10,000 lbs Capacity Single Point Manual Release Car Lift SAE-F10P is every mechanic’s best friend! This powerful Two Post car l…
- There is a $250 Surcharge for the following states: OR, WA, ID, MT, ND, SD, and ME
- Is this being shipped to a residential address? An additional $150 will be charged to residential
Description
Stratus Pro Floor Plate Open Top 10,000 lbs Capacity Single Point Manual Release Car Lift SAE-F10P is every mechanic’s best friend! This powerful Two Post car lift, featuring a rock-solid floor plate, takes your regular garage to a professional standard. It’s capable of lifting a massive 10000 lbs with ease. It’s highly versatile, with an open top design that makes it easy to work on any vehicle – be it a sleek sedan or a towering SUV. To top it off, it has a single point manual release for safe and swift operations. It’s high time you took your car servicing to another level with this 2 post 10,000 pound car lift.
Important Notes
A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
There is an In-House pick-up discount of $350
Product Features
Base plate / opens top

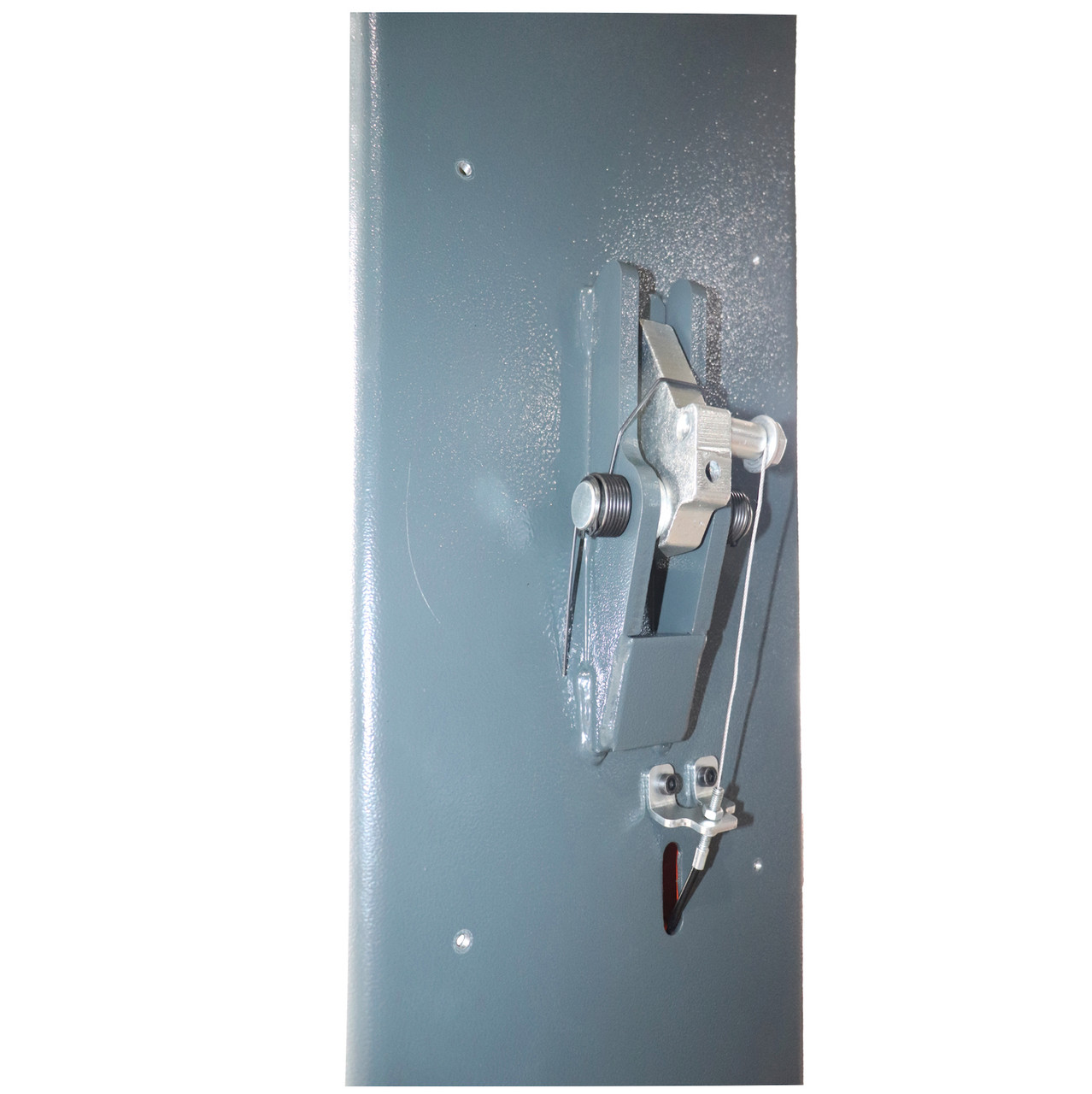

Single point manual release

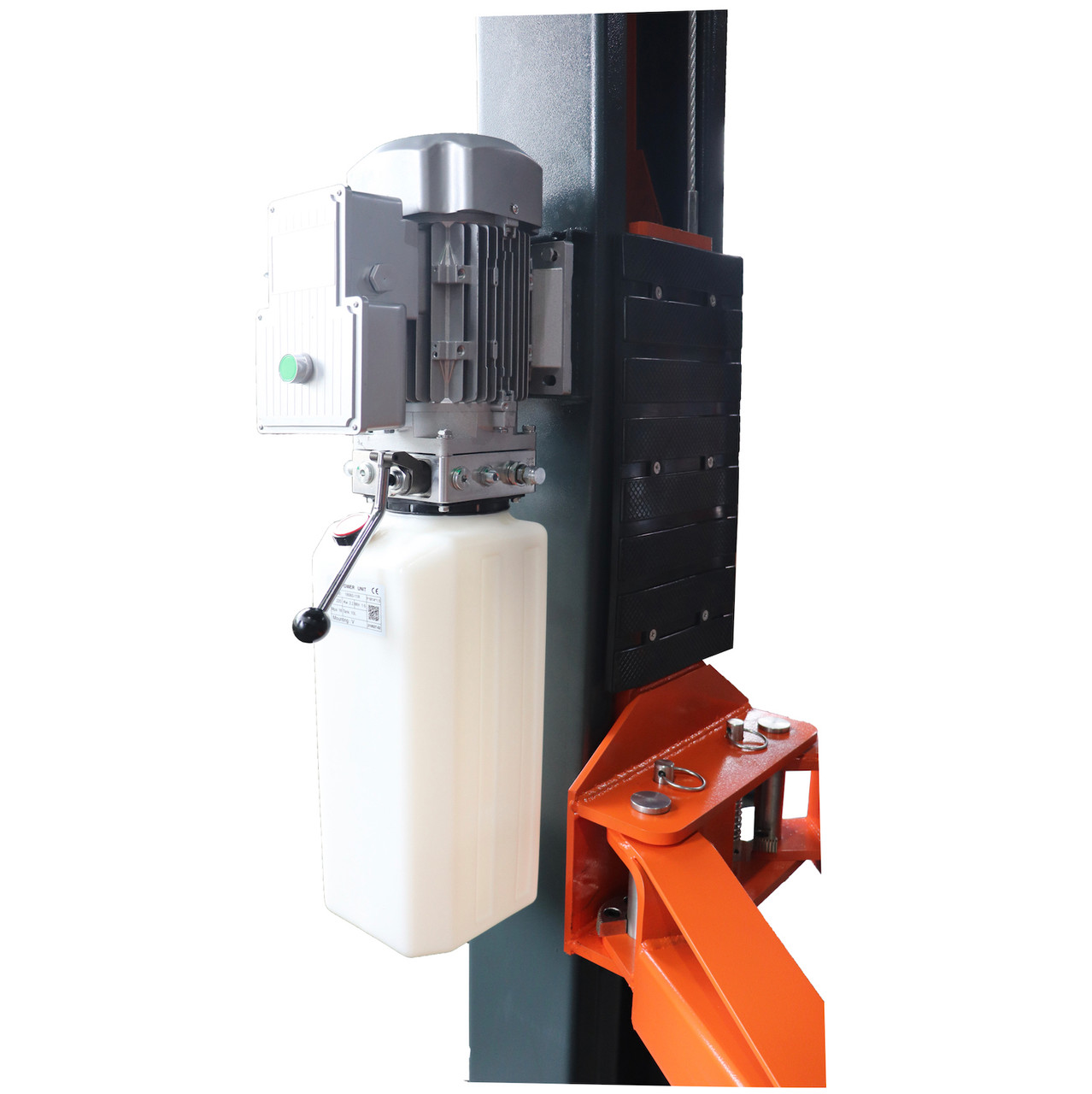

Aluminum motor power unit
Built-in anti-surge valves

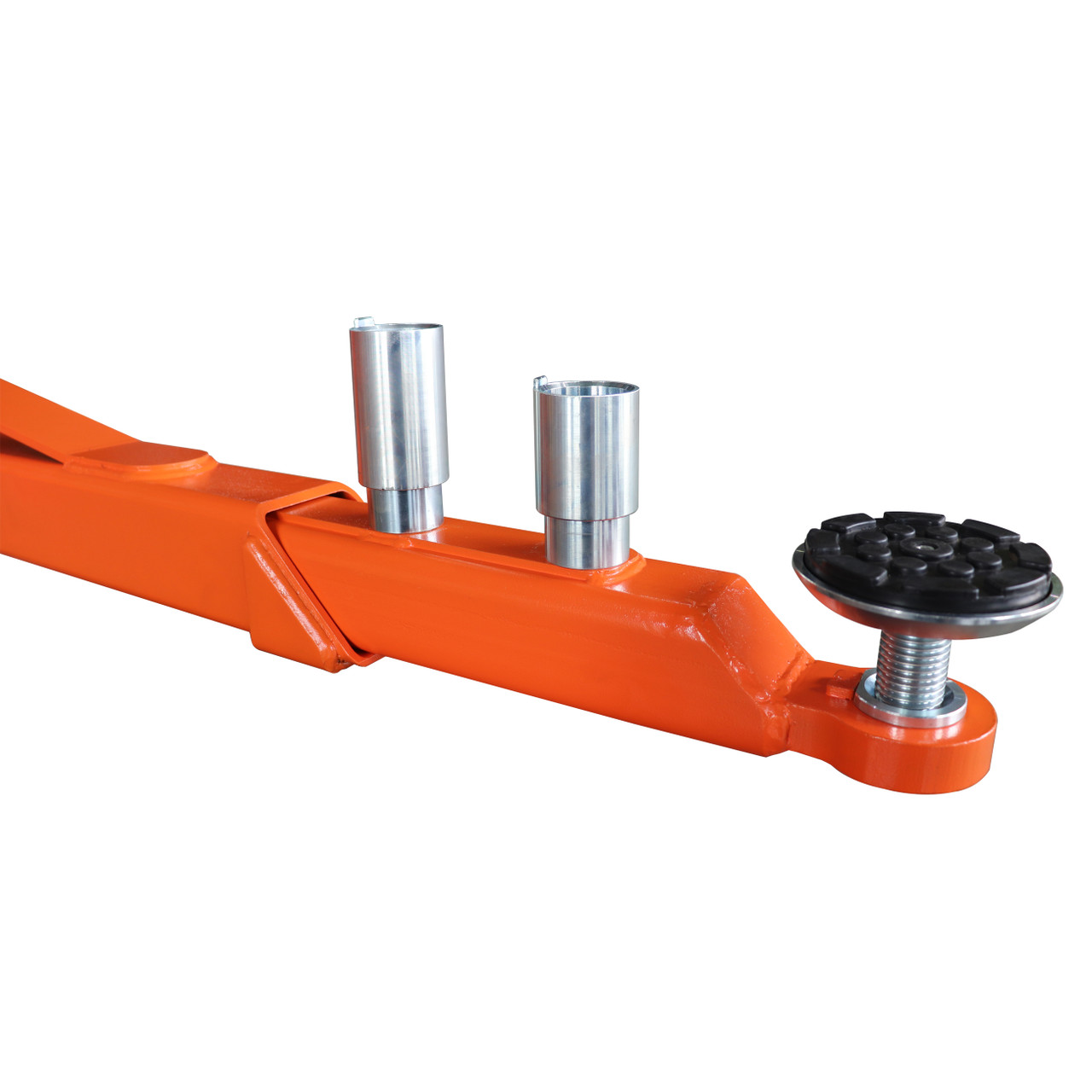

4 screw-up rubber pads and 8pcs truck adapters
Truck adapter size: 4 of each 2 3/4″ and 4″
2 x 2-stage arms & 2 x 3-stage arms
Top limiter switch

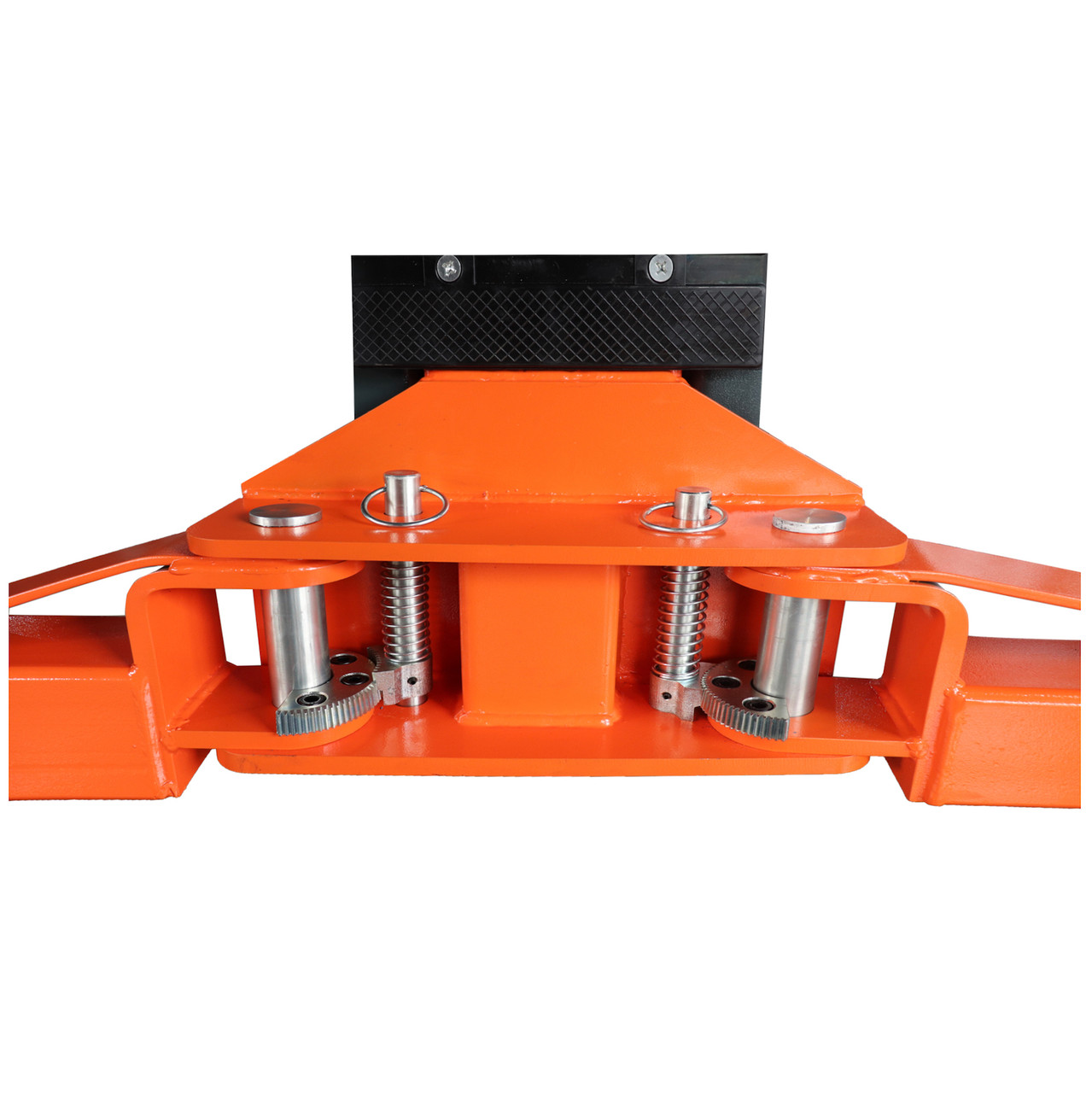

Automatic arm restraints
Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)

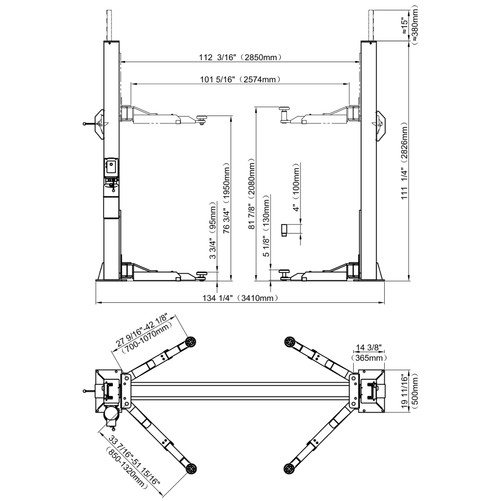

Product Specifications
Capacity
10,000 LBS
Rise
Max Lifting Height with Adaptors
81 7/8” (2080 MM)
Min Lifting Height with Adaptors
5 1/8” (130 MM)
Max Lifting without Adaptors
76 3/4” (1950 MM)
Min Lifting without Adaptors
3 3/4” (95 MM)
Rise Time
~50SEC
Outside Dimensions
Overall Height
111 1/4” (2826 MM)
Overall Width
19 11/16” (500 MM)
Overall Length
134 1/4” (3410 MM)
Inside Dimensions
Inside Columns
112 3/16” (2850 MM)
Drive Thru
101 5/16” (2574 MM)
Arms
Front Arm Reach Max
51 15/16” (1320 MM)
Front Arm Reach Min
33 7/16” (850 MM)
Rear Arm Reach Max
42 1/8” (1070 MM)
Rear Arm Reach Min
27 9/16” (700 MM)
Power Unit
Motor
3 HP, 220V, 60 HZ, 1PH
Oil
AW32 or AW46
Breaker
30A
Shipping
Weight
1,411 LBS
Dimension
115” L * 24” W * 35” H
Concrete
Requirements
6” – 3000 PSI
