Stratus 4 Post 14,000 lbs Capacity Pneumatic Safety Lock Release Car Lift SAE-414

Original price was: $10,906.00.Current price is: $10,579.00. USD

4 People watching this product now!

Ready for heavy duty lifting? Then, the Stratus SAE-414 Car Lift is just what you need. Able to handle up to 14,000 lbs, this 4 post lift is perfect for servici…

SKU: SAE-414 Category:
  • There is a $250 Surcharge for the following states: OR, WA, ID, MT, ND, SD, and ME
  • Is this being shipped to a residential address? An additional $150 will be charged to residential
BROCHURE
MANUAL

Description

Ready for heavy duty lifting? Then, the Stratus SAE-414 Car Lift is just what you need. Able to handle up to 14,000 lbs, this 4 post lift is perfect for servicing larger vehicles. Its pneumatic safety lock release gives you peace-of- mind, knowing your car stays secure during the entire lifting process. Easy to use and highly durable, this 4 post car hoist for sale is another premium product from Stratus Auto Equipment.

Important Notes

  • A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
  • Sales tax will be automatically waived for out of Texas Buyers
  • Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
  • Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer

Product Features

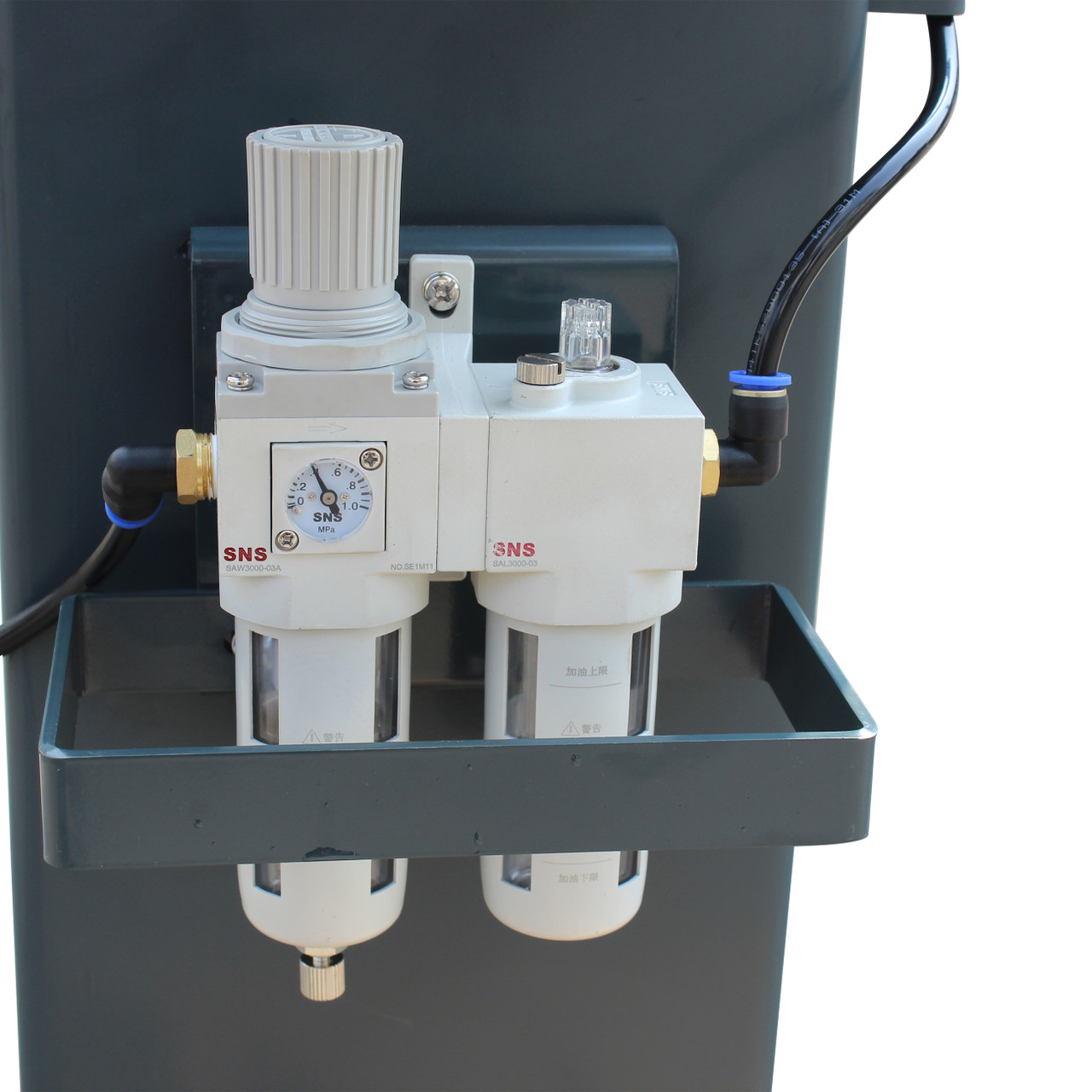

  • Pneumatic safety lock release
  • Max lifting height limiter switch to ensure the cylinders work within the stroke
  • Dual safety device design: Second safety device will be automatically locked while primary safety locks are out of operation.
  • Optional pneumatic rolling bridge jack
  • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
  • Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)

Product Specifications

Capacity

14,000 LBS

Rise

Min lifting height 7 1/2” (191 MM)
Max lifting height 73 7/16” (1865 MM)
Lifting Time ~50 SEC
Clearance Height 65 15/16” (1675  MM)

Outside Dimensions

Overall Height 91 ½” (2324 MM)
Overall Width 144 9/16” (3672 MM)
Overall Length w/ ramps 277 3/16” (7040 MM)
Overall Length w/o ramps 237 3/8” (6030 MM)

Inside Dimensions

Width columns 107 9/16” (2732 MM)
Drive Thru 82 1/2” – 86 7/16” (2096 MM – 2196 MM)

Runways

Runway width 20” (508 MM)
Runway Length 227 3/16” (5770 MM)
Between Runways 42 1/2” – 46 7/16” (1080 MM – 1180 MM)

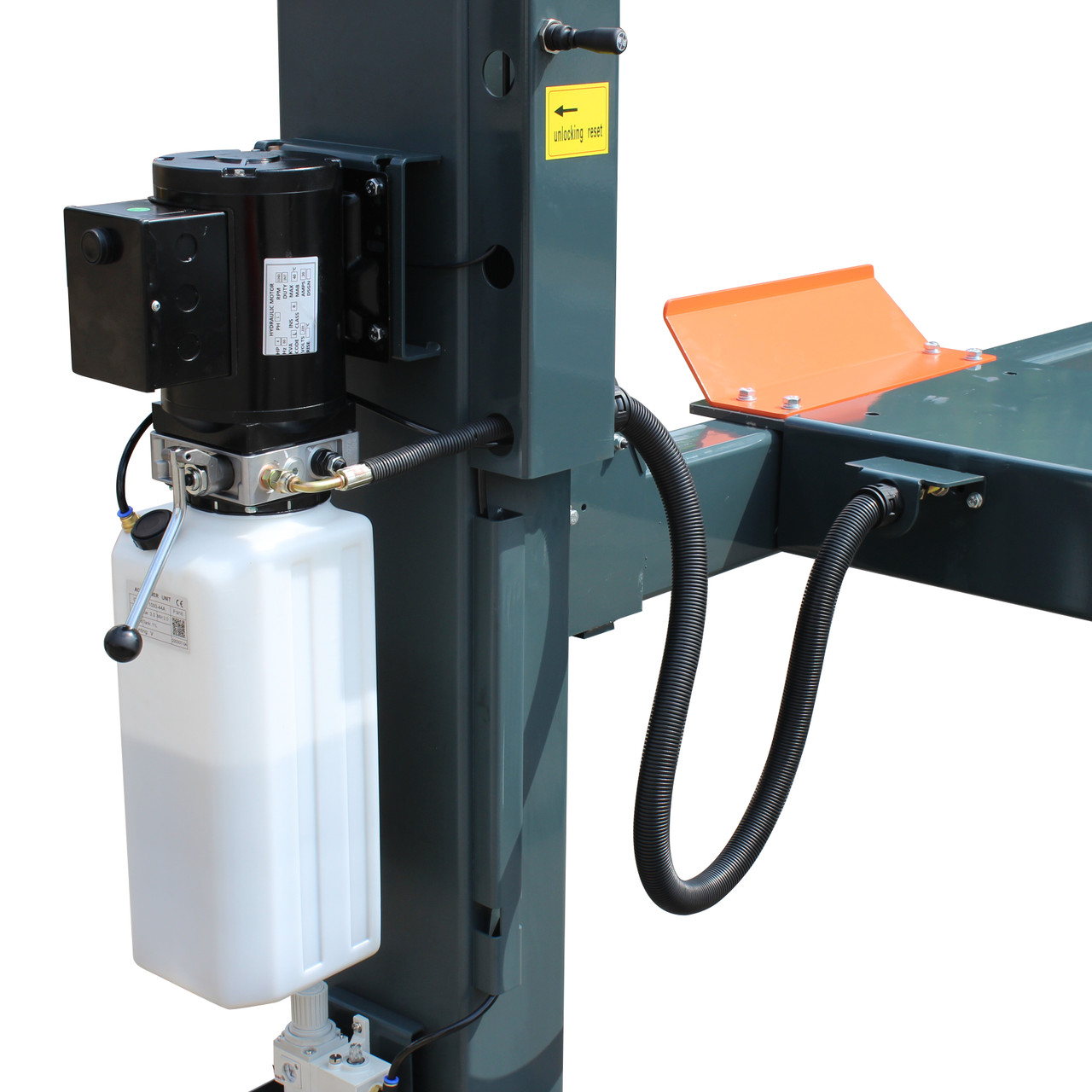

Power Unit

Motor 4 HP, 220V, 60 HZ, 1ph
Oil AW32 or AW46
Breaker 30A

Shipping

Weight 3,122 LBS
Dimension 233” L * 22” W * 34” H
