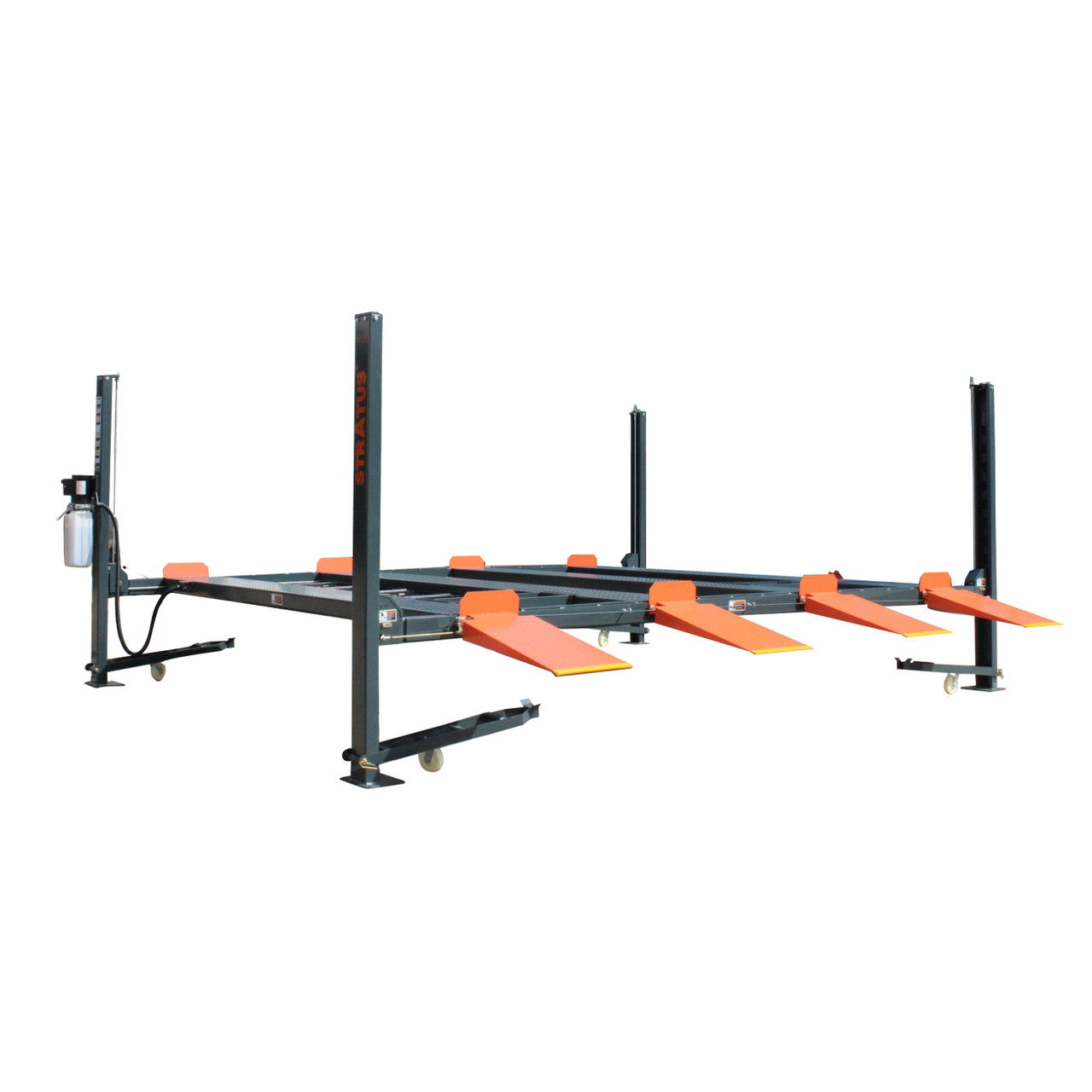

Stratus 4 Post 9,000 lbs Capacity Manual Release Double Parking Car Lift SAE-P49D (Castor Kit Sold Separately)

$12,108.00 USD

3 People watching this product now!

Say hello to a more efficient garage with the Stratus 4 Post 9,000 lbs Capacity Manual Release Double Parking Car Lift. Capable of shouldering a whopping 9000 l…

SKU: SAE-P49D Categories: ,

Description

Say hello to a more efficient garage with the Stratus 4 Post 9,000 lbs Capacity Manual Release Double Parking Car Lift. Capable of shouldering a whopping 9000 lbs, this 4 post double car storage lift is all about robustness. With its manual safety release function, you’ll always be in full control of your car’s positioning. But the best part? It doubles up as a parking lift, allowing you to make the most out of space in your garage. Get your hands on this fantastic gadget today!

Important Notes

  • A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
  • Sales tax will be automatically waived for out of Texas Buyer
  • Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
  • Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer

Product Features

  • Single point manual safety lock release
  • Included 2 jack trays, 8 drip trays
  • Mechanic locks automatically engaged to lock position in ascending processing.
  • Imbalance protection, safe and reliable
  • Self-lubricating pulleys and pre-tensioned cable
  • Skid-proof diamond shape runway
  • Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
  • Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)

Product Specifications

Capacity

9,000 LBS

Rise

Min lifting height 5 7/8” (150 MM)
Max lifting height 86 5/8” (2200 MM)
Lifting Time ~ 55SEC
Clearance Height 80 3/4” (2052 MM)

Outside Dimensions

Overall Height 97 ½” (2476 MM)
Overall Width 233 15/16” (5942 MM)
Overall Length w/ ramps 207 3/4” (5277.5 MM)
Overall Length w/o ramps 175” (4445 MM)

Inside Dimensions

Width columns 225 3/16” (5720 MM)
Drive Thru 74 15/16” (1904 MM) (per side)

Runways

Runway width 18 11/16” (475 MM)
Runway Length 175” (4445 MM)
Between Runways 37 11/16” (958 MM)

Power Unit

Motor 4 HP, 220V, 60 HZ, 1ph
Oil AW32 or AW46
Breaker 20A

Shipping

Weight 3931 LBS
Dimension 232” L * 22” W * 50” H
