Stratus Extra Wide Drive Through Floor Plate 10,000 lbs Capacity Single Point Manual Release Car Lift SAE-F10X
$4,409.00 USD
The Stratus Extra Wide Drive Through Floor Plate Car Lift is your perfect garage partner. With an impressive capacity of 10,000 lbs, this extra wide 2 post car …
- There is a $250 Surcharge for the following states: OR, WA, ID, MT, ND, SD, and ME
- Is this being shipped to a residential address? An additional $150 will be charged to residential
Description
The Stratus Extra Wide Drive Through Floor Plate Car Lift is your perfect garage partner. With an impressive capacity of 10,000 lbs, this extra wide 2 post car lift makes heavy lifting duties a breeze. This feature-packed device includes a Single Point Manual Release system, giving you the flexibility and control you need in a car lift. Durable, reliable, and extra wide to accommodate various vehicles, the Stratus Car Lift is built to perform. Own the Stratus Extra Wide 10,000 lbs 2 post car lift and upgrade your lifting game!
Important Notes
A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
There is an In-House pick-up discount of $380
Product Features
Heavy duty 14-folds columns
Single point manual release

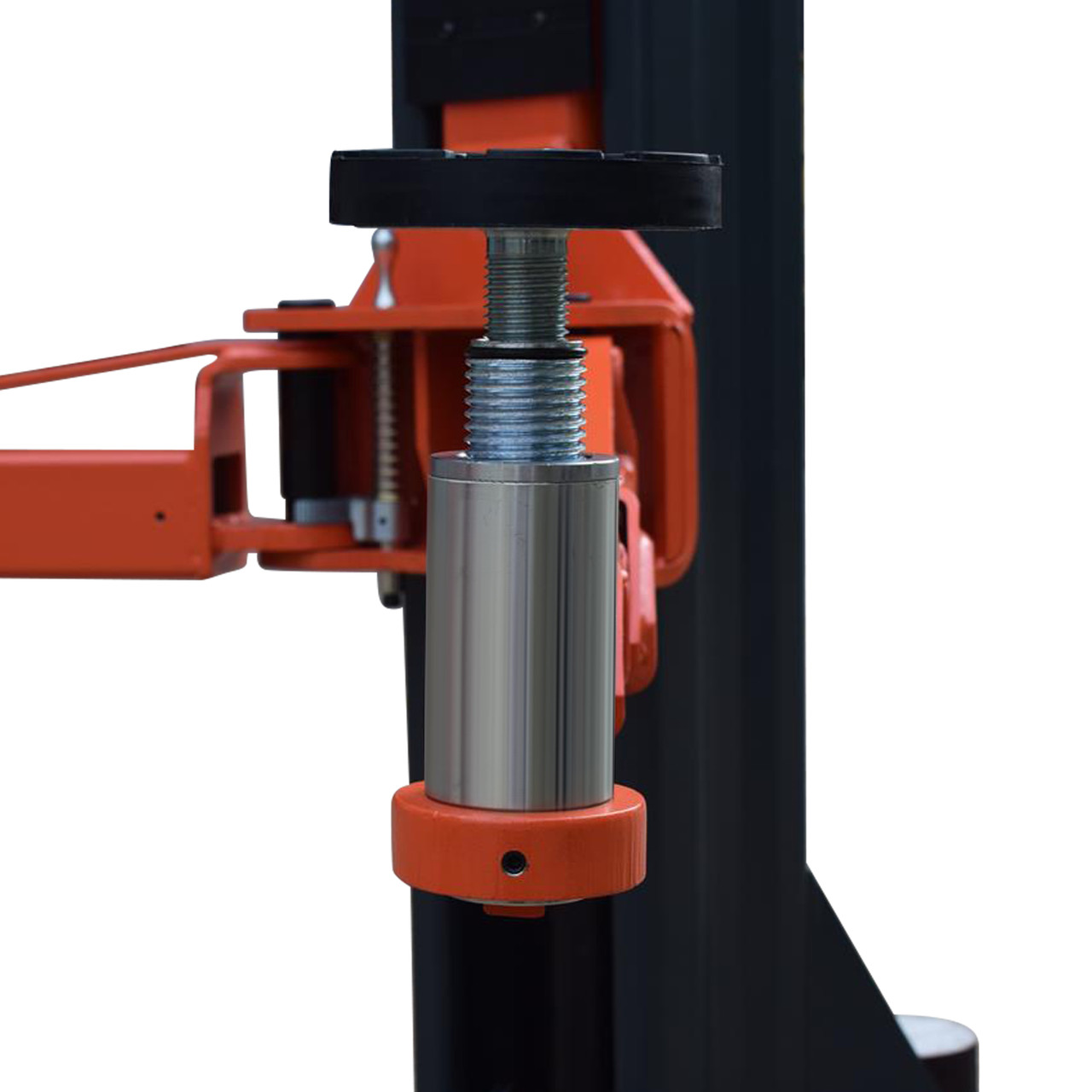

4 screw-up rubber pads
4 x 4″ truck adapters
2 x 2-Stage arms and 2 x 3-Stage arms
Anti-surge valves
Top limiter switch
Automatic arm restraints
Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Product Specifications
Capacity
10,000 LBS
Rise
Max Lifting Height with Adaptors
83 1/16 (2110 MM)
Min Lifting Height with Adaptors
10 7/16” (265 MM)
Max Lifting without Adaptors
76 3/4 (1950 MM)
Min Lifting without Adaptors
3 15/16” (100 MM)
Rise Time
~50SEC
Outside Dimensions
Overall Height
112” (2845 MM)
Overall Width
20 1/2” (520 MM)
Overall Length
144 7/8” (3680 MM)
Inside Dimensions
Inside Columns
118 1/8” (3000 MM)
Drive Thru
106 5/16” (2700 MM)
Arms
Front Arm Reach Max
56 5/16” (1430 MM)
Front Arm Reach Min
35 7/16” (900 MM)
Rear Arm Reach Max
44 7/8” (1140 MM)
Rear Arm Reach Min
22 13/16” (580 MM)
Power Unit
Motor
3 HP, 220V, 60 HZ, 1PH
Oil
AW32 or AW46
Breaker
30A
Shipping
Weight
1,495 LBS
Dimension
118” L * 21” W * 44” H
Concrete
Requirements
6” – 3000 PSI
