Stratus Extra Wide Floor Plate 12,000 lbs Capacity Single Point Manual Release Auto Lift SAE-F12X
$5,259.00 USD
Introducing the Stratus Extra Wide Floor Plate! This incredibly engineered piece of heavy-duty machinery is a game-changer in the world of car lifts. Its unique…
- There is a $250 Surcharge for the following states: OR, WA, ID, MT, ND, SD, and ME
- Is this being shipped to a residential address? An additional $150 will be charged to residential
Description
Introducing the Stratus Extra Wide Floor Plate! This incredibly engineered piece of heavy-duty machinery is a game-changer in the world of car lifts. Its unique design supports an astonishing 12,000 lbs. capacity, powerful enough to safely lift your vehicles. As part of our distinguished series of 2 Post 12000lbs manual release storage lifts, you can assure your cars are secured and protected. Set yourself apart with the reliable and robust the F12X Auto Lift. There’s no better place to trust your beloved cars with!
Important Notes
A $250 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift can ONLY be shipped to Commercial Address, Local Installer or Truck Terminal
Buyer is responsible for unloading freight – freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
Product Features

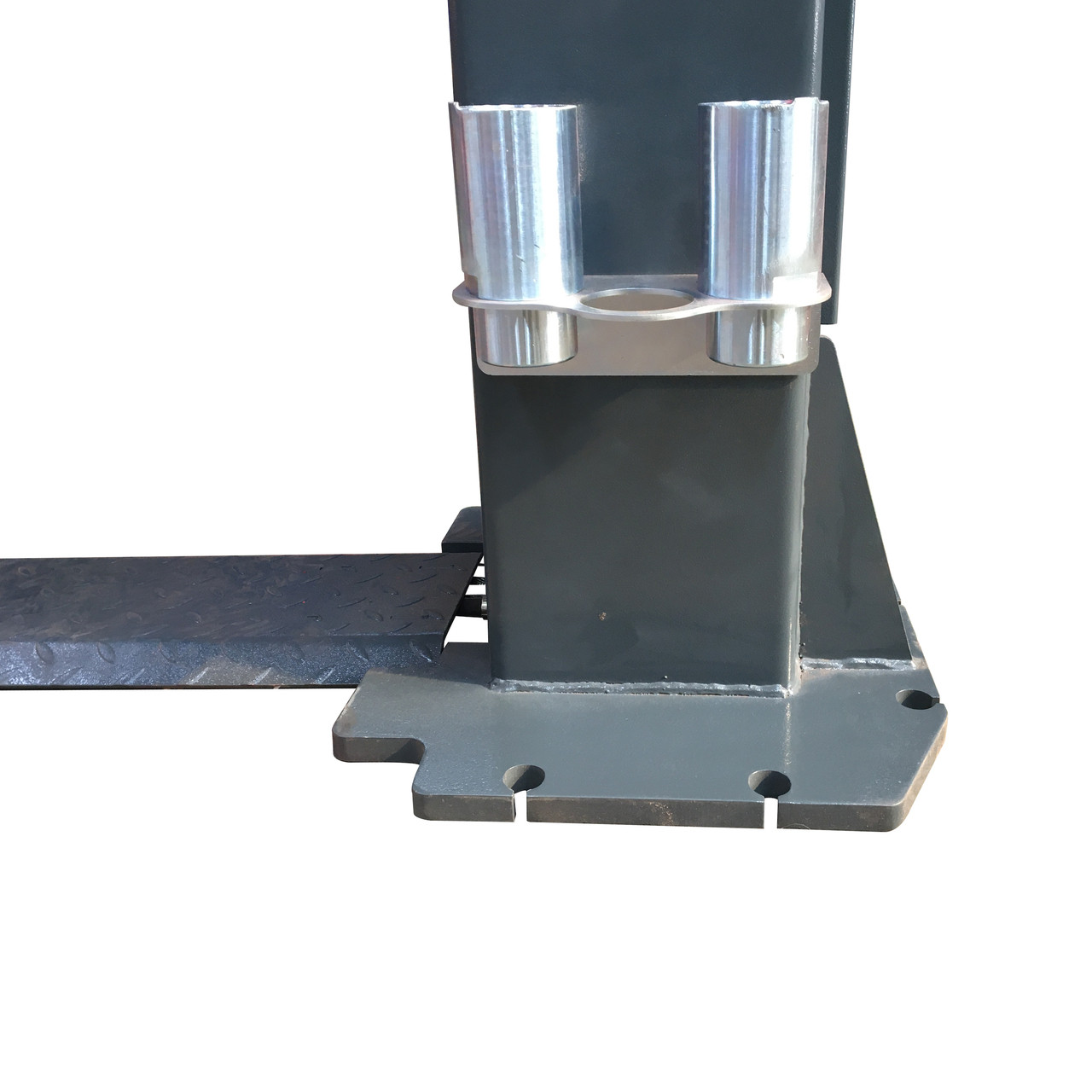

Base Plate / Open Top
Single point manual release
4 screw-up rubber pads
4 x 4″ truck adapters

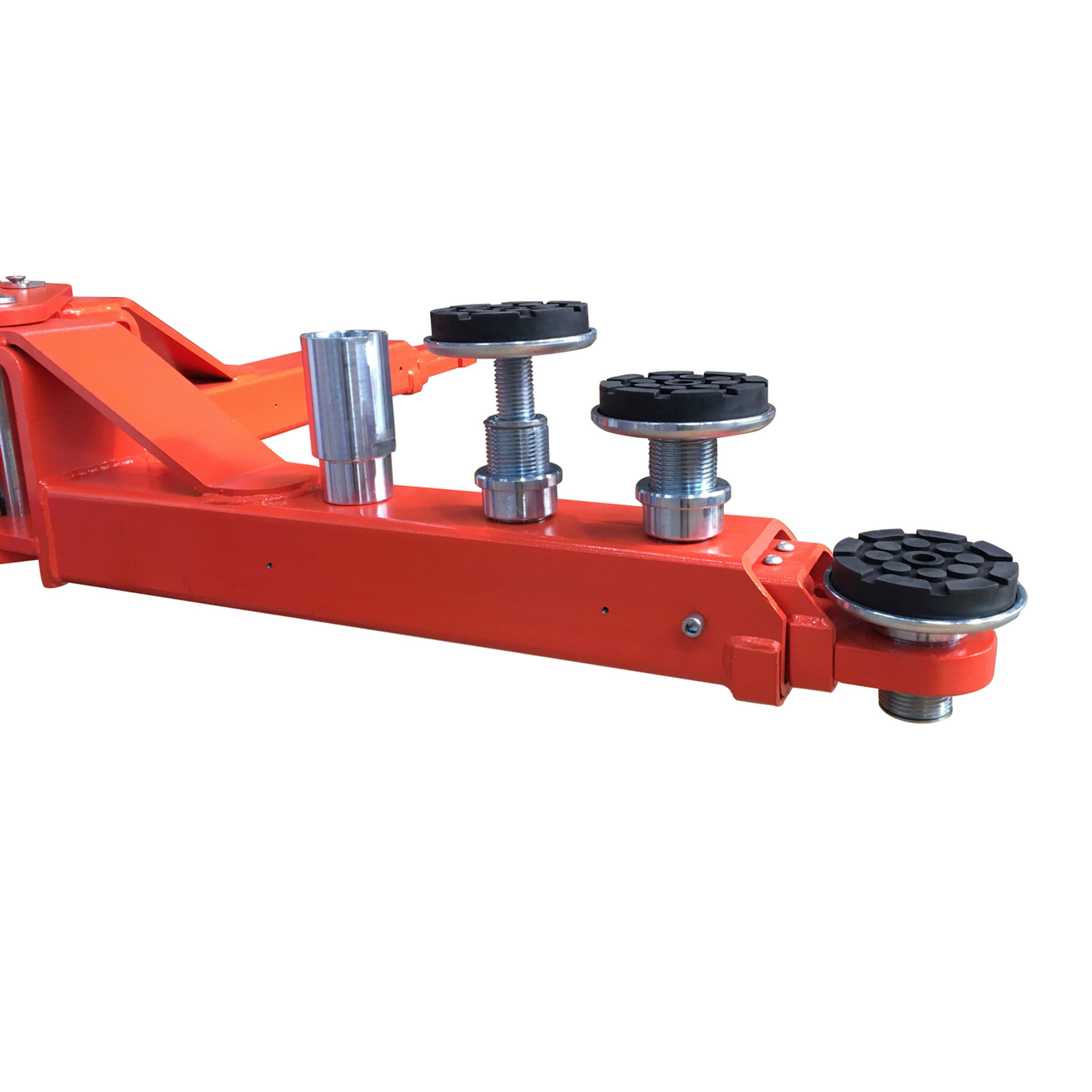

4 x 3-Stage arms
Multi-strand, non-rotary, non-stretchy cable
Top limiter switch
Stable and reliable, easy maintenance
Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Product Specifications
Capacity
12,000 LBS
Rise
Max Lifting Height with Adaptors
78 13/16” (2002 MM)
Min Lifting Height with Adaptors
8 1/8” (207 MM)
Max Lifting without Adaptors
74 13/16“(1900 MM)
Min Lifting without Adaptors
4 1/8” (105 MM)
Rise Time
~55SEC
Outside Dimensions
Overall Height
122 13/16” (3120 MM)
Overall Width
21 1/4” (540 MM)
Overall Length
160 7/16” (3120 MM)
Inside Dimensions
Inside Columns
129 15/16” (3300 MM)
Drive Thru
116 1/8” (2949 MM)
Arms
Front Arm Reach Max
70 7/8” (1800 MM)
Front Arm Reach Min
35 1/16” (890 MM)
Rear Arm Reach Max
70 7/8” (1800 MM)
Rear Arm Reach Min
35 1/16” (890 MM)
Power Unit
Motor
4 HP, 220V, 60 HZ, 1PH
Oil
AW32 or AW46
Breaker
30A
Shipping
Weight
1,980 LBS
Dimension
111” L * 42” W * 27” H
Concrete
Requirements
6” – 3000 PSI
